Schneider Electric RPM43F7

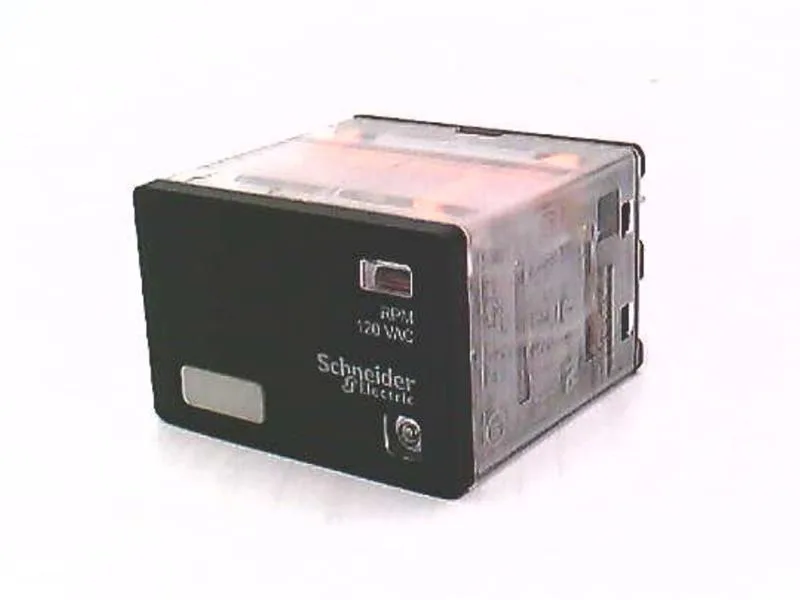

Schneider RPM43F7 Harmony electromechanical relay, 4PDT, 15 A, 120 V AC coil

MPNRPM43F7
Obsolete

Schneider Electric Harmony Electromechanical Relays RPM43F7 relay, 4PDT-4NO-4NC, 15 A rated current, 120 V AC coil, socket-mount, flat pin terminals, with status LED, IP40 housing.

$16.51Ref. price · indicative, final on quote
Schneider Electric RPM43F7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RPM43F7 key specifications
ParameterValue
Series namePower
Control typeWithout lockable test button
Range of productHarmony Electromechanical Relays
Product or component typePlug-in relay
Contacts type and composition4 C/O
Maximum switching voltage250 V IEC
Drop-out voltage threshold>= 0.15 Uc AC
Coil voltage120 V AC 50/60 Hz
Voltage250 V IEC 300 V CSA 300 V UL
Rated operational voltage limits96...132 V AC
[Uimp] rated impulse withstand voltage4 kV 1.2/50 µs
[Ie] rated operational current15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC

All specifications

RPM43F7 additional specifications
ParameterValue
[Ithe] conventional enclosed thermal current15 A -40...131 °F (-40...55 °C)
Degree of protection (Housing only)IP40 conforming to IEC 60529
Pollution degree3
Shock resistance15 gnin operation 30 gnnot operating
Vibration resistance3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 5 gn +/- 1 mm 10...150 Hz)5 cycles not operating
Contacts materialAgNi
Electrical durability100000 cycles resistive
Mechanical durability10000000 cycles
StandardsUL 508 IEC 61810-1 CSA C22.2 No 14
CategoryUS10CP221127
Status LEDWith
Test levelsLevel A group mounting
Release time20 ms at nominal voltage
Shape of pinFlat
Operating rate<= 18000 cycles/hour no-load
Device short nameRPM
Operating positionAny position
Device presentationComplete product
Dielectric strength1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic
Protection categoryRT I
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching capacity3750 VA 420 W
Minimum switching capacity170 mW 10 mA, 17 V
Average coil consumption in2.5 60 Hz
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)

Product details

Overview

The RPM43F7 is a Schneider Harmony electromechanical relay with a 4PDT-4NO-4NC contact arrangement, rated 15 A continuous current and controlled by a 120 V AC coil. It carries UL 508, IEC 61810-1, and CSA C22.2 No 14 approvals, plus California Proposition 65 compliance, and is rated for shock up to 15 g in operation and 30 g non-operating.

Compared to the RPM22F7, which has 2 poles and a 1NO-1NC contact form, the RPM43F7 provides 4 poles with a 4PDT-4NO-4NC arrangement, doubling the switching capacity for multi-circuit isolation or load grouping.
