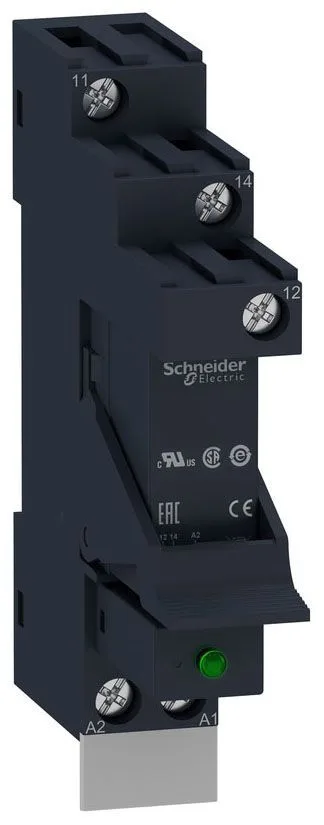

Schneider Electric RSB1A120F7PV

Schneider RSB1A120F7PV Interface Relay, 120 V AC Coil, 12 A

MPNRSB1A120F7PV
Obsolete

Schneider RSB1A120F7PV Square D Selector Switch Head — now discontinued, supplied from remaining surplus and broker stock.

$27.00 – $45.59Ref. price · indicative, final on quote
Schneider Electric RSB1A120F7PV datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

RSB1A120F7PV key specifications
ParameterValue
Series nameInterface relay
Control typeWithout
Range of productHarmony Electromechanical Relays
Product or component typePre-assembled plug-in relay with socket
Contacts type and composition1 C/O
Maximum switching voltage300 V DC IEC
Minimum switching voltage12 V
Drop-out voltage threshold>= 0.15 Uc AC
Coil voltage120 V AC 50/60 Hz
Voltage400 V IEC 60947
[Ue] rated operational voltage96...144 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage3.6 kV IEC 61000-4-5

All specifications

RSB1A120F7PV additional specifications
ParameterValue
Load current12 A 250 V AC 12 A 28 V DC
Minimum switching current10 mA
[Ie] rated operational current12 A AC-1/DC-1) NO IEC 6 A AC-1/DC-1) NC IEC
[Ithe] conventional enclosed thermal current12 A -40...104 °F (-40...40 °C)
IP degree of protectionIP20 conforming to IEC 60529
Connections - terminalsConnector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Shock resistance10 gn 11 ms) not operating IEC 60068-2-27 5 gn 11 ms) in operation IEC 60068-2-27
Vibration resistance+/- 1 mm (f= 10...55 Hz) conforming to IEC 60068-2-6
Contacts materialSilver alloy (AgNi)
Electrical durability100000 cycles, 12 A at 250 V, AC-1 NO 100000 cycles, 6 A at 250 V, AC-1 NC
Mechanical durability10000000 cycles
StandardsIEC 61810-1 CSA C22.2 No 14 UL 508 IEC 61984
CategoryUS10CP221127
Status LED1 LED
Test levelsLevel A group mounting
Torque value7.08 lbf.in (0.8 N.m) 7.0 lbf.in (0.8 N.m)
Operating rate<= 18000 cycles/hour no-load
Operating time20 ms operating 20 ms reset
Contact operationStandard
Device short nameRSB
Average resistance8800 Ohm AC 20 °C +/- 15 %
Compatibility codeRSB
Operating positionAny position
Device presentationComplete product
Dielectric strength1000 V AC between contacts 5000 V AC between coil and contact
Protection categoryRT I
Safety reliability dataB10d = 100000
Average coil consumption0.75 VA AC
Maximum switching capacity3000 VA AC 336 W DC
Minimum switching capacity120 mW 10 mA, 12 V
Sale per indivisible quantity30
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...158 °F (-40...70 °C) AC)

Product details

Overview

The RSB1A120F7PV is a Harmony interface relay from Schneider, rated for 12 A switching current and 3000 VA switching capacity with a 120 V AC coil and 1CO contact form. It carries CE, UL, CSA, and EAC certifications and is built with AgNi contacts for general-purpose switching in control panels.
