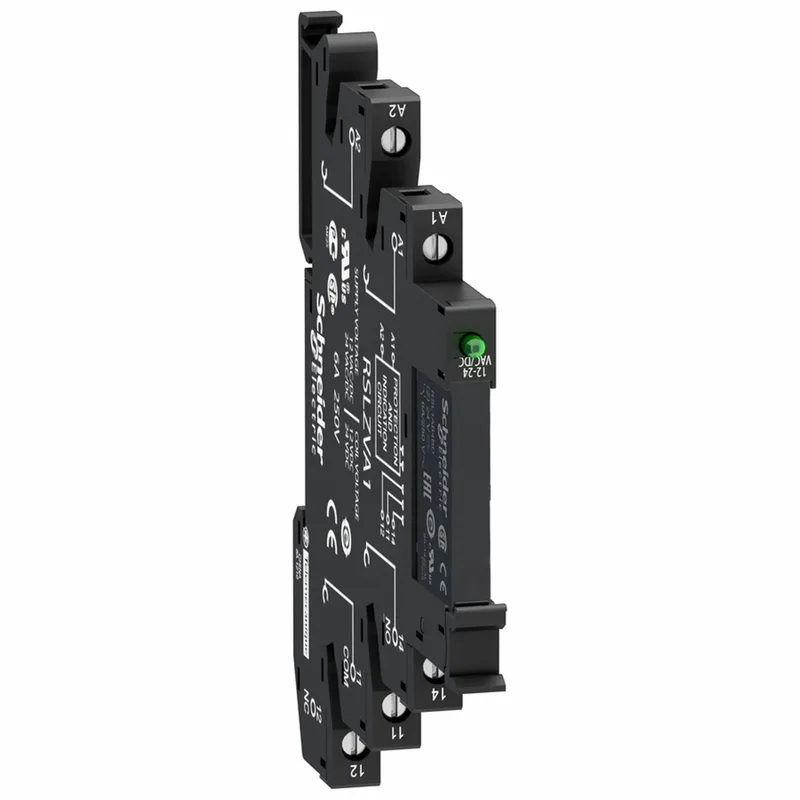

Schneider Electric RSL1PVBU
MPNRSL1PVBU
Active
Relay, Interface, Slim, Screw Mount, 6A, 24VDC Coil, with LED|Relay, Interface, Slim, Screw Mount, 6 Amp, 24 Volt DC Coil, with LED, Protection Circuit, Lots of 10
$16.41Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Slim interface relay |
| Series name | RSL series |
| Control type | Without lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Pre-assembled plug-in relay with socket |
| Contacts type and composition | 1 C/O |
| Input voltage | 24 V AC/DC 21.6...28.8 V) |
| Maximum switching voltage | 277 V |
| Minimum switching voltage | 12 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Coil voltage | 24 V AC/DC |
| Voltage | 250 V IEC 277 V cUL |
All specifications
| Parameter | Value |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV IEC |
| Load current | 6 A 250 V AC 0.5 mm mounting distance |
| Minimum switching current | 100 mA |
| [Ie] rated operational current | 6 A 1 C/O AC-1/DC-1)IEC/UL |
| [Ithe] conventional enclosed thermal current | 6 A -40...131 °F (-40...55 °C) |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end |
| Contact terminal arrangement | Separate |
| Terminals description ISO n°1 | (A1-A2)CO (11-12-14)OC |
| Shock resistance | 10 gn 11 ms) in operation IEC 60068-2-27 5 gn 11 ms) not operating IEC 60068-2-27 |
| Vibration resistance | 10 gn +/- 1 mm 10...150 Hz)10 cycles not operating IEC 60068-2-6 5 gn +/- 1 mm 10...150 Hz)10 cycles in operation IEC 60068-2-6 |
| Depth | 3.7 in (95 mm) |
| Width | 0.2 in (6.2 mm) |
| Height | 3.09 in (78.6 mm) |
| Contacts material | Silver alloy (AgSnO2) |
| Electrical durability | 60000 cycles resistive, 6 A 250 V, AC-1 |
| Mechanical durability | 10000000 cycles |
| Standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| Marking | CE |
| Category | US10CP221127 |
| Status LED | With |
| Fixing mode | Plastic compression spring |
| Test levels | Level A group mounting |
| Shape of pin | Flat (PCB type) |
| Operating rate | <= 360 cycles/hour under load |
| Operating time | 5 ms reset 12 ms |
| Contact operation | Standard |
| Tightening torque | < 0.5 N.m M2.5 |
| Average resistance | 3390 Ohm DC 23 °C +/- 10 % |
| Compatibility code | RSL |
| Operating position | Any position |
| Device presentation | Complete product |
| Dielectric strength | 1000 V AC between contacts 4000 V AC between coil and contact |
| Protection category | RT III |
| Safety reliability data | B10d = 60000 |
| Average coil consumption | 0.17 W, DC |
| Maximum switching capacity | 1500 VA 150 W |
| Minimum switching capacity | 120 mW |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
