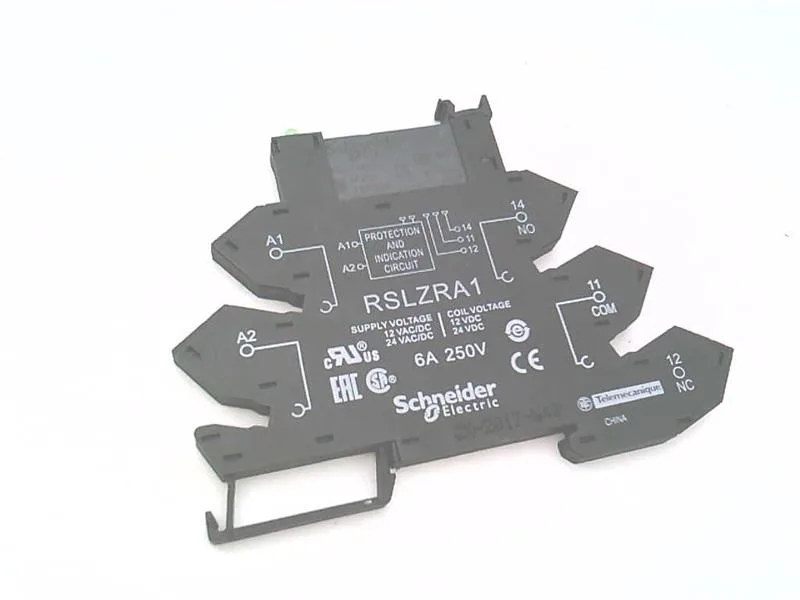

Schneider Electric RSLZRA1
MPNRSLZRA1
Active
SQD RSLZRA1 SPRING SOCKET, 12/24|SQD RSLZRA1 SPRING SOCKET, 12/24 AC/DC (RELAY)
$3.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| Contacts type and composition | 1 C/O |
| Switching voltage | 12 V AC/DC 24 V AC/DC |
| [Ue] rated operational voltage | < 300 V AC |
| Rated operational voltage limits | 21.6...28.8 V 11.4...14.4 V |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| [Ith] conventional free air thermal current | 6 A |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Connections - terminals | Spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end Spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end |
| Contact terminal arrangement | Separate |
| Pollution degree | 3 |
All specifications
| Parameter | Value |
|---|---|
| CAD overall depth | 4.0 in (101 mm) |
| CAD overall width | 0.2 in (6.2 mm) |
| CAD overall height | 3.09 in (78.6 mm) |
| Standards | UL 508 IEC 61984 |
| Marking | CE |
| Category | US10CP221127 |
| Fixing mode | Plastic compression spring (35 mm symmetrical DIN rail) |
| Shape of pin | Flat |
| Clamping force | 10...40 N |
| Group of product | RSL_SPRING_TERS_12-24 |
| Device short name | RSLZ |
| Compatibility code | RSLZ |
| Device presentation | Basic element |
| Overvoltage category | III |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
RSLZRA1
