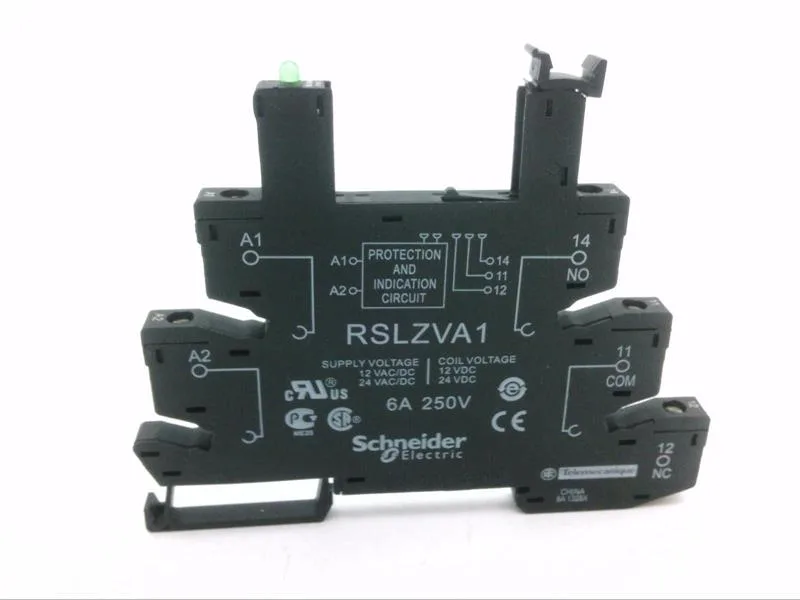

Socket equipped with LED and protection circuit, Harmony, for RSL1 relays, srew connector|Socket equipped with LED and protection circuit, Harmony, for RSL1 relays, srew connector, 12...24V AC DC

$3.78Ref. price · indicative, final on quote
Schneider Electric RSLZVA1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RSLZVA1 key specifications
ParameterValue
Range of productHarmony Electromechanical Relays
Product or component typeSocket
Contacts type and composition1 C/O
Switching voltage12 V AC/DC 24 V AC/DC
[Ue] rated operational voltage< 300 V AC
Rated operational voltage limits11.4...14.4 V 21.6...28.8 V
[Uimp] rated impulse withstand voltage3.6 kV
[Ith] conventional free air thermal current6 A
IP degree of protectionIP20 conforming to IEC 60529
Connections - terminalsConnector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
Contact terminal arrangementSeparate
Pollution degree3

All specifications

RSLZVA1 additional specifications
ParameterValue
CAD overall depth3.7 in (95 mm)
CAD overall width0.2 in (6.2 mm)
CAD overall height3.09 in (78.6 mm)
StandardsIEC 61984 UL 508
MarkingCE
CategoryUS10CP221127
Fixing modePlastic compression spring (35 mm symmetrical DIN rail)
Shape of pinFlat
Group of productRSL_CON_12-24
Device short nameRSLZ
Tightening torque< 0.4 N.m M2.5
Compatibility codeRSLZ
Device presentationBasic element
Overvoltage categoryIII
Sale per indivisible quantity10
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...158 °F (-40...70 °C)
MPN
RSLZVA1
