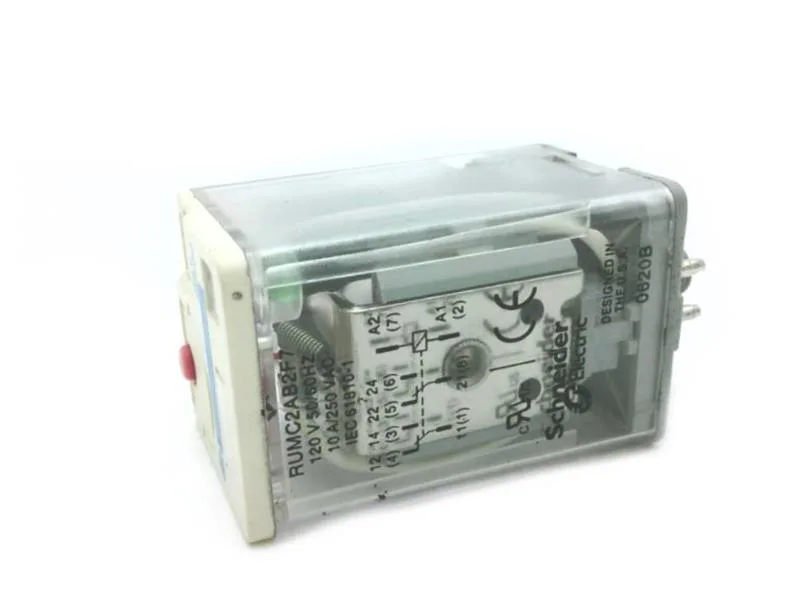

Schneider Electric RUMC2AB2F7

Schneider RUMC2AB2F7 Harmony Relay, 120 V AC, 10 A, 2-pole, UL/CSA

MPNRUMC2AB2F7
Obsolete

Schneider RUMC2AB2F7 Relays & Sockets — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$77.08Ref. price · indicative, final on quote
Schneider Electric RUMC2AB2F7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

RUMC2AB2F7 key specifications
ParameterValue
Series nameUniversal
Control typeLockable test button
Range of productHarmony Relay
Product or component typePlug-in relay
Contacts type and composition2 C/O
Maximum switching voltage250 V AC IEC 250 V DC IEC
Minimum switching voltage17 V
Drop-out voltage threshold>= 0.15 Uc AC
Coil voltage120 V AC
Voltage250 V IEC 300 V CSA 300 V UL
Rated operational voltage limits96...132 V AC
[Uimp] rated impulse withstand voltage4 kV

All specifications

RUMC2AB2F7 additional specifications
ParameterValue
Minimum switching current10 mA
[Ie] rated operational current10 A AC-1/DC-1 (NO) conforming to IEC 12 A at 28 V DC-1 conforming to UL 16 A at 277 V AC-1 conforming to UL 5 A AC-1/DC-1 (NC) conforming to IEC
[Ithe] conventional enclosed thermal current10 A -40...131 °F (-40...55 °C)
IP degree of protectionIP40 conforming to EN/IEC 60529
Pollution degree3
Shock resistance10 gnin operation 10 gnnot operating
Vibration resistance3 gn +/- 1 mm 10...150 Hz)10 cycles in operation EN/IEC 60068-2-27 4 gn +/- 1 mm 10...150 Hz)10 cycles not operating EN/IEC 60068-2-27
Contacts materialAgNi
Electrical durability100000 cycles resistive
Mechanical durability5000000 cycles
StandardsEN/IEC 61810-1 UL 508 CSA C22.2 No 14
Category21127-ZELIO ICE CUBE RELAYS
Status LEDWith
Shape of pinCylindrical
Operating rate<= 1200 cycles/hour under load
Operating time20 ms
Device short nameRUM
Average resistance1700 Ohm 20 °C +/- 15 %
Compatibility codeRUM
Operating positionAny position
Dielectric strength1500 V AC between contacts 1550 V AC between coil and contact 1550 V AC between poles
Protection categoryRT I
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching capacity2500 VA AC 280 W DC
Minimum switching capacity170 mW
Average coil consumption in2...3 60 Hz
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)

Product details

Overview

The RUMC2AB2F7 is a Schneider Harmony Relay 2-pole relay with a 120 V AC coil, rated for 10 A switching current and a maximum switching capacity of 2500 VA AC or 280 W DC. It carries UL, CSA, and GOST certifications per EN/IEC 61810-1 and UL 508, and is housed in an IP40-rated socket-mount package with a lockable test button and status LED.

The RUMC2AB2F7 is an active Schneider product with no announced end-of-life; it remains in current production. For a line-down or BOM-fill need, an RFQ is the fastest path to confirm availability and lead time. Compared to the RXM2AB2B7 (3-pole), the RUMC2AB2F7 offers a lower maximum switching capacity and fewer poles, suiting applications where 2-pole isolation and 2500 VA are sufficient.
