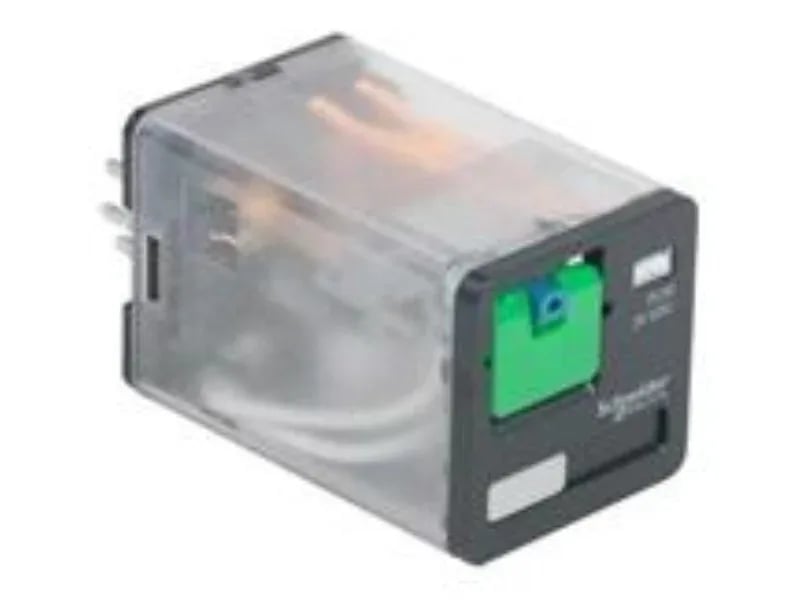

Schneider Electric RUMC31BD

Schneider RUMC31BD Harmony Relay, 24 V DC, 3 C/O, 10 A

MPNRUMC31BD
Active

Schneider Electric Harmony RUM series, RUMC31BD, plug-in universal relay, 24 V DC coil, 3 C/O contacts, 10 A at 277 V AC, UL/CSA/IEC approved.

$171.80Ref. price · indicative, final on quote
Schneider Electric RUMC31BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

RUMC31BD key specifications
ParameterValue
TypeUniversal relay
Series nameRUM series
Control typeLockable test button
Range of productHarmony Electromechanical Relays
Product or component typePlug-in relay
Contacts type and composition3 C/O
Maximum switching voltage250 V IEC
Drop-out voltage threshold>= 0.1 Uc DC
Coil voltage24 V DC
Voltage250 V IEC 300 V CSA 300 V UL
Rated operational voltage limits19.2...26.4 V DC
[Uimp] rated impulse withstand voltage4 kV 1.2/50 µs)

All specifications

RUMC31BD additional specifications
ParameterValue
[Ie] rated operational current10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 277 V AC (same polarity) conforming to CSA 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC
[Ithe] conventional enclosed thermal current10 A -40...131 °F (-40...55 °C)
IP degree of protectionIP40
Pollution degree2
Shock resistance10 gn 11 ms) in operation IEC 60068-2-27 10 gn 11 ms) not operating IEC 60068-2-27
Vibration resistance3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 4 gn +/- 1 mm 10...150 Hz)5 cycles not operating
Contacts materialAgNi
Electrical durability100000 cycles resistive
Mechanical durability5000000 cycles
StandardsIEC 61810-1 CSA C22.2 No 14 UL 508
CategoryUS10CP221127
Reset time20 ms at nominal voltage
Status LEDWithout
Test levelsLevel A group mounting
Shape of pinCylindrical
Operating rate<= 1200 cycles/hour under load
Operating time20 ms at nominal voltage
Average resistance470 Ohm 20 °C +/- 15 %
Compatibility codeRUM
Operating positionAny position
Device presentationComplete product
Dielectric strength1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic
Protection categoryRT I
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching capacity2500 VA/280 W
Minimum switching capacity170 mW 10 mA, 17 V
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)

Product details

The RUMC31BD is a Harmony electromechanical plug-in relay from the RUM series. Coil is 24 V DC, drop-out threshold >= 0.1 Uc DC. Contacts are 3 C/O with AgNi material, rated 10 A at 277 V AC (UL/CSA) and 10 A at 250 V AC (NO) per IEC. That's enough for most panel interposing or output switching duties in control cabinets.

Listed to IEC 61810-1, CSA C22.2 No 14, and UL 508. That covers the typical panel certification requirements in North America and Europe. The part carries a pollution degree 2 rating and an IP40 enclosure. Rated insulation voltage is 250 V IEC, 300 V CSA/UL.

Frequently asked questions

What standards does RUMC31BD comply with?

It complies with IEC 61810-1, CSA C22.2 No 14, and UL 508. These cover industrial control relays and panel safety requirements.
