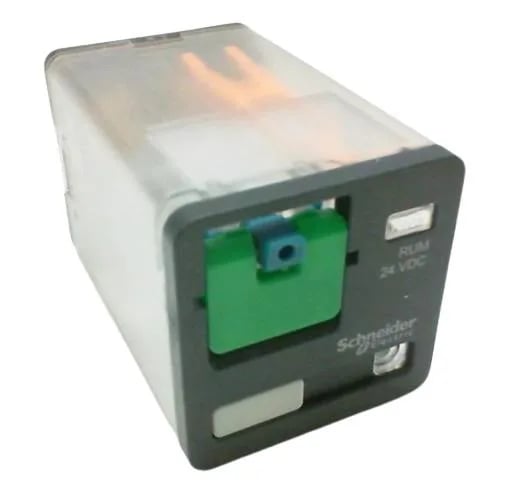

RUMC32BD
MPNRUMC32BD
Active
Relay, Plug In, 11 Pin, 10A, 24VDC Coil, 250VAC, 3PDT|Relay, Plug In, 11 Pin, 10 Amp, 24 Volt DC Coil, 250 Volt AC, 3-Pole Double Throw, 3 Normally Open, 3 Normally Closed
$8.38Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type | Universal relay |
| Series name | RUM series |
| Control type | Lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 3 C/O |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Coil voltage | 24 V DC |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs) |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 277 V AC (same polarity) conforming to CSA 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC |
| [Ithe] conventional enclosed thermal current | 10 A -40...131 °F (-40...55 °C) |
| IP degree of protection | IP40 |
| Pollution degree | 2 |
| Shock resistance | 10 gn 11 ms) in operation IEC 60068-2-27 10 gn 11 ms) not operating IEC 60068-2-27 |
| Vibration resistance | 3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 4 gn +/- 1 mm 10...150 Hz)5 cycles not operating |
| Contacts material | AgNi |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 5000000 cycles |
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Category | US10CP221127 |
| Reset time | 20 ms at nominal voltage |
| Status LED | With |
| Test levels | Level A group mounting |
| Shape of pin | Cylindrical |
| Operating rate | <= 1200 cycles/hour under load |
| Operating time | 20 ms at nominal voltage |
| Average resistance | 470 Ohm 20 °C +/- 15 % |
| Compatibility code | RUM |
| Operating position | Any position |
| Device presentation | Complete product |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
| Protection category | RT I |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
RUMC32BD
