RUMF33F7 is a plug-in universal relay with three changeover (3 C/O) contacts rated 10 A at 277 V AC (UL/CSA) and 10 A at 250 V AC (NO, IEC). The coil is 120 V AC, 50/60 Hz, drawing 3 VA at 60 Hz. AgNi contacts handle 2500 VA / 280 W maximum switching capacity. Dielectric strength: 2500 V AC between coil and contact (reinforced), 1500 V AC between contacts (micro-disconnection). Meets pollution degree 3, IP40 protection, and can operate in any position. Holds approvals for UL 508, CSA C22.2 No 14, and IEC 61810-1—suitable for both North American and international control panels.

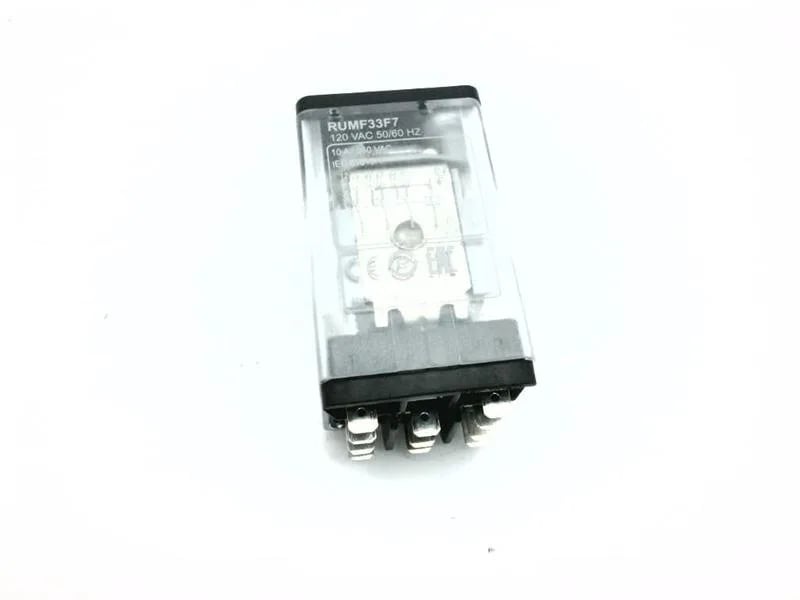

Schneider Electric RUMF33F7 Relay, 3 C/O, 10 A, 120 V AC
MPNRUMF33F7
Active
Schneider Electric Harmony Electromechanical Relays, Universal relay, RUM series, 3 C/O, 120 V AC 50/60 Hz coil, 10 A at 277 V AC, Plug-in relay with status LED.
$12.19Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type | Universal relay |
| Series name | RUM series |
| Control type | Without lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 3 C/O |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Coil voltage | 120 V AC 50/60 Hz |
| Voltage | 250 V IEC 300 V CSA 300 V UL |
| Rated operational voltage limits | 96...132 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs) |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 277 V AC (same polarity) conforming to CSA 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC |
| [Ithe] conventional enclosed thermal current | 10 A -40...131 °F (-40...55 °C) |
| IP degree of protection | IP40 |
| Pollution degree | 3 |
| Shock resistance | 10 gn 11 ms) in operation IEC 60068-2-27 10 gn 11 ms) not operating IEC 60068-2-27 |
| Vibration resistance | 3 gn +/- 1 mm 10...150 Hz)5 cycles in operation 4 gn +/- 1 mm 10...150 Hz)5 cycles not operating |
| Contacts material | AgNi |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 5000000 cycles |
| Standards | UL 508 CSA C22.2 No 14 IEC 61810-1 |
| Category | US10CP221127 |
| Reset time | 20 ms at nominal voltage |
| Status LED | With |
| Test levels | Level A group mounting |
| Shape of pin | Flat |
| Operating rate | <= 1200 cycles/hour under load |
| Operating time | 20 ms at nominal voltage |
| Average resistance | 1700 Ohm 20 °C +/- 15 % |
| Compatibility code | RUM |
| Operating position | Any position |
| Device presentation | Complete product |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
| Protection category | RT I |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Average coil consumption in | 3 60 Hz |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
Product details
Frequently asked questions
What is the category code for the RUMF33F7?
The listed category is US10CP221127.
What standards does the RUMF33F7 comply with?
It complies with UL 508, CSA C22.2 No 14, and IEC 61810-1.
