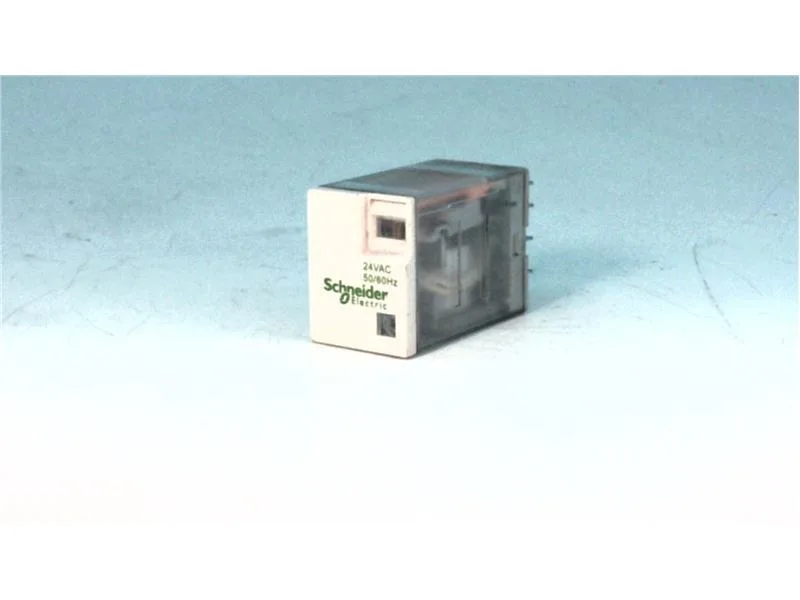

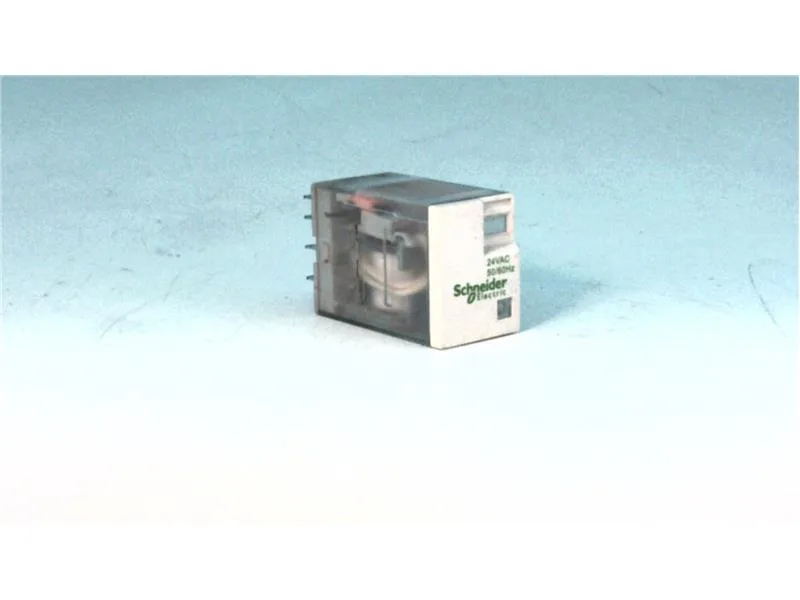

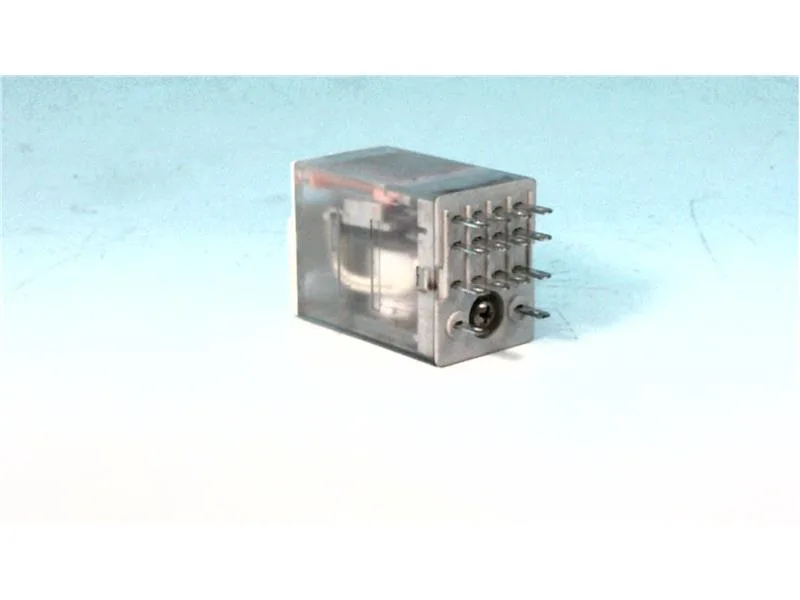

Schneider Electric RXM4LB1B7
MPNRXM4LB1B7
Active
RXM4LB1B7 - 4PDT by SCHNEIDER ELECTRIC
$3.99Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Miniature relay |
| Series name | RXM series |
| Control type | Without lockable test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Plug-in relay |
| Contacts type and composition | 4 C/O |
| Maximum switching voltage | 250 V AC 28 V DC |
| Minimum switching voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Coil voltage | 24 V AC 50/60 Hz |
| Voltage | 250 V conforming to IEC |
| Rated operational voltage limits | 19.2...26.4 V AC |
All specifications
| Parameter | Value |
|---|---|
| Load current | 3 A at 250 V AC 3 A at 28 V DC |
| Minimum switching current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| [Ie] rated operational current | 1.5 A at 28 V (DC) NC conforming to IEC 1.5 A at 250 V (AC) NC conforming to IEC 3 A at 28 V (DC) NO conforming to IEC 3 A at 250 V (AC) NO conforming to IEC 3 A at 24 V (DC) NO conforming to IEC 3 A at 220 V (AC) NO conforming to IEC 3 A at 28 V (DC) conforming to UL 3 A at 250 V (AC) conforming to UL |
| [Ithe] conventional enclosed thermal current | 3 A at -40...55 °C |
| Pollution degree | 2 |
| Shock resistance | 30 gn for not operating conforming to IEC 60068-2-27 10 gn for in operation conforming to IEC 60068-2-27 |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10...50 Hz)operating conforming to IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10...50 Hz)not operating conforming to IEC 60068-2-6 |
| Contacts material | Silver alloy (Ag/Ni) |
| Electrical durability | 200000 cycles resistive load 23 °C 100000 cycles resistive load at 55 °C |
| Mechanical durability | 20000000 cycles |
| Standards | IEC 61810-1 (iss. 2) CE UL 508 |
| Status LED | Without |
| Test levels | Level A group mounting |
| Shape of pin | Flat (faston type) |
| Operating rate | <= 18000 cycles/hour no-load |
| Average resistance | 180 Ohm at 23 °C +/- 10 % |
| Operating position | Any position |
| Dielectric strength | 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection |
| Protection category | RT I |
| Safety reliability data | B10d = 100000 |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 750 VA AC 84 W DC |
| Minimum switching capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40...85 °C |
MPN
RXM4LB1B7
