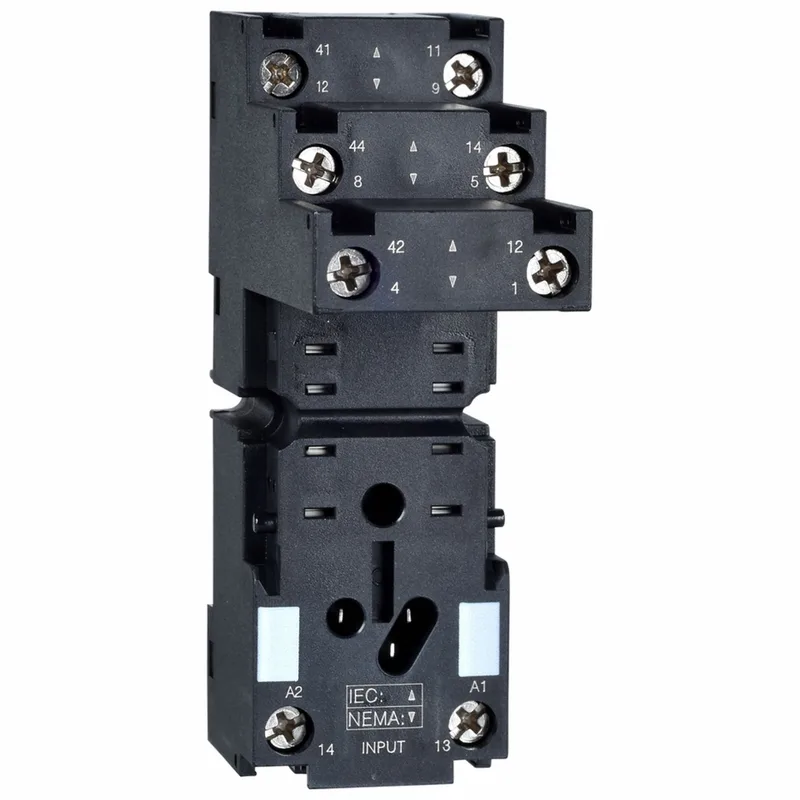

Schneider Electric RXZE2S108M
MPNRXZE2S108M
Active
Relay, Plug-In, Socket, 8 Blade, 10A, 250V AC/DC, Box Lugs|Relay, Plug-In, Socket, 8 Blade, 10 Amp, 250 Volt AC/DC, Box Lugs
$2.46 – $9.35Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
| Product or component type | Socket |
| Contacts type and composition | 2 C/O |
| [Ue] rated operational voltage | < 250 V IEC < 300 V UL |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ith] conventional free air thermal current | 12 A |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Wire stripping length | 0.3 in (8 mm) |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.25...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Contact terminal arrangement | Separate |
| Pollution degree | 3 |
| Width | 1.06 in (27 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 61984 |
| Marking | CE |
| Category | US10CP221128 |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Shape of pin | Flat |
| Device short name | RXZ |
| Tightening torque | < 1 N.m M3 |
| Dielectric strength | 2500 V |
| Overvoltage category | III |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
RXZE2S108M
