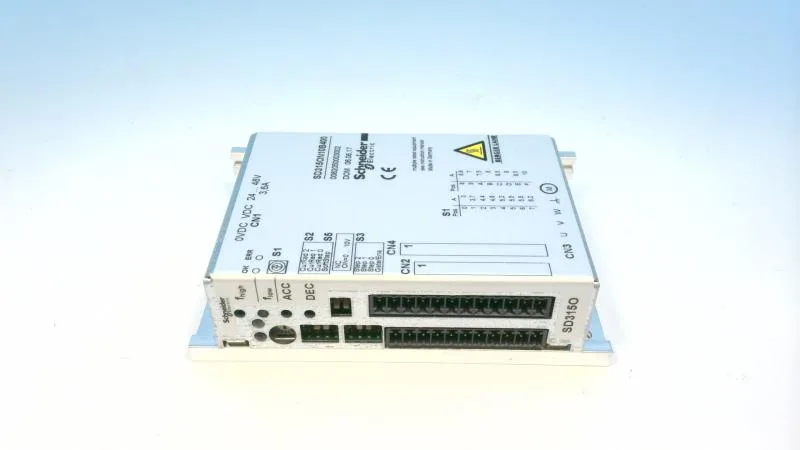

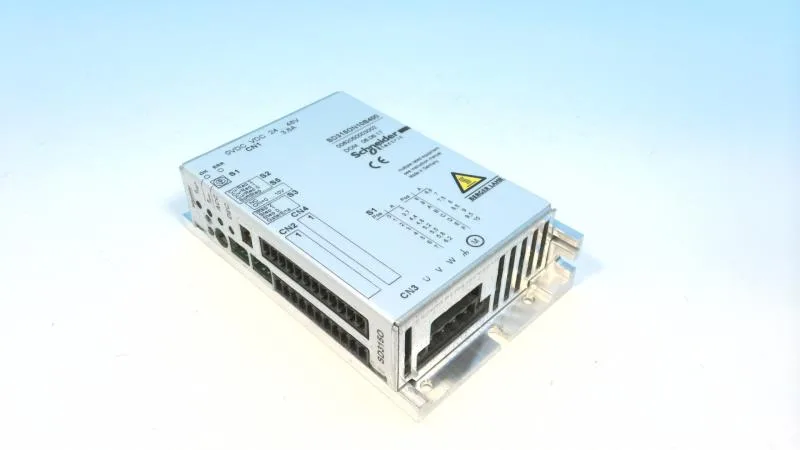

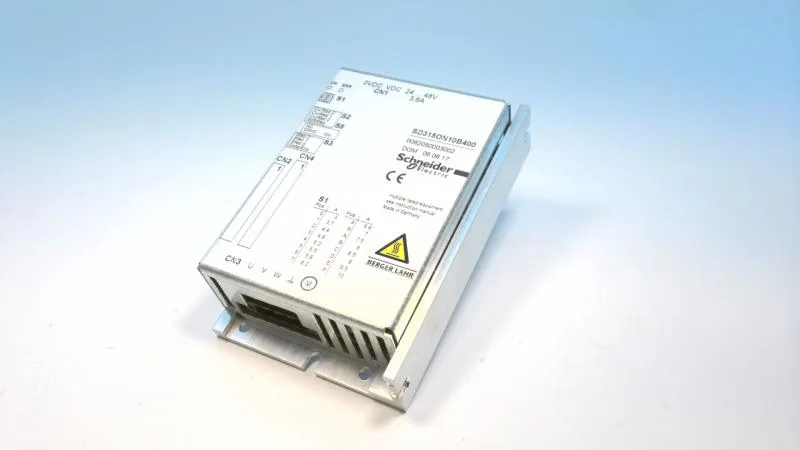

Schneider Electric SD315ON10B400
MPNSD315ON10B400
Active
Square D SD315ON10B400 Sd3 15O Single|Square D SD315ON10B400 Sd3 15O Single
$562.61 – $655.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | Single phase |
| Parameter | Value |
|---|---|
| Range of product | Lexium SD3 |
| Device short name | SD315 |
| Current consumption | 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm) |
| Format of the drive | Block |
| Supply voltage type | DC |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Supply voltage limits | 19...60 V |
| Communication interface | Pulse/direction, Integrated |
| IP degree of protection | IP20 |
| Product or component type | Motion stepper drive |
| Supply voltage | 24...48 V - 15...10 % |
| Maximum motor phase current | 10 A |
MPN
SD315ON10B400
