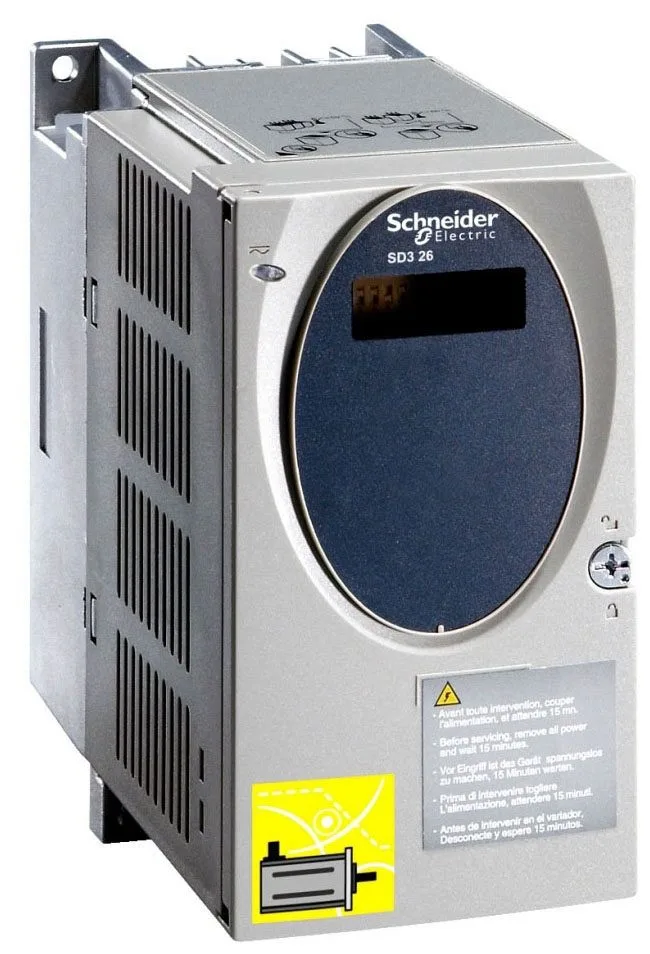

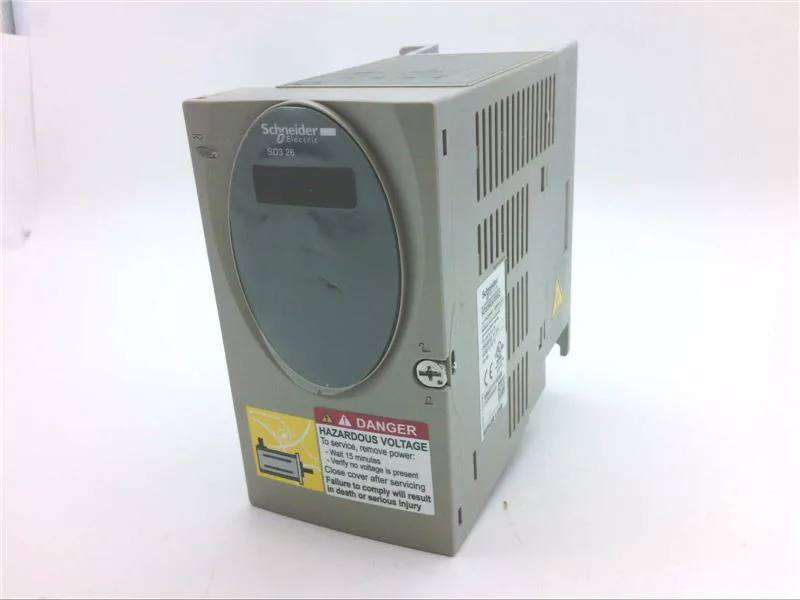

Schneider Electric SD326DU25S2
MPNSD326DU25S2
Active
motion control stepper motor drive - SD326 - pulse/direction - <= 2.5 A|motion control stepper motor drive - SD326 - pulse/direction - <= 2.5 A
$389.89 – $1,059.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium SD3 |
| Supply voltage type | AC/DC |
| Product or component type | Motion stepper drive |
| Supply voltage limits | 100...120 V 200...240 V |
| Supply voltage | 100...120 V - 15...10 % 200...230 V - 15...10 % |
| Voltage state 0 guaranteed | 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm) |
| Inrush current | 60 A |
| Short-circuit current | 0.5 kA |
| Maximum leakage current | 30 mA IEC 60990-3 |
| Maximum motor phase current | 2.5 A |
| Nominal power | 180 W 115 V 270 W 230 V |
| Network frequency limits | 50...60 Hz - 15...10 %) |
All specifications
| Parameter | Value |
|---|---|
| Phases | Single phase |
| IP degree of protection | IP20 On upper part: IP40 (without removal of protective film) |
| Communication interface | Pulse/direction, Integrated |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Category | US1PC5518285 |
| Device short name | SD326 |
| Format of the drive | Block |
| Overvoltage category | III |
| Associated fuse rating | 6 A 115 V 6 A 230 V |
MPN
SD326DU25S2
