Schneider Electric SD326RU25S2 — Unclassified

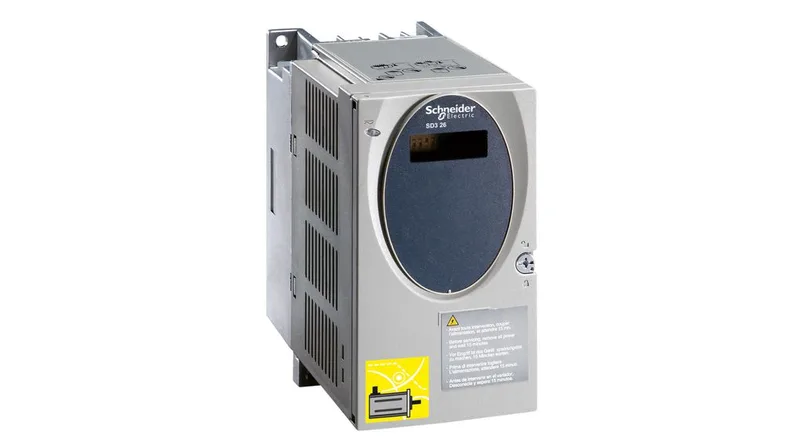

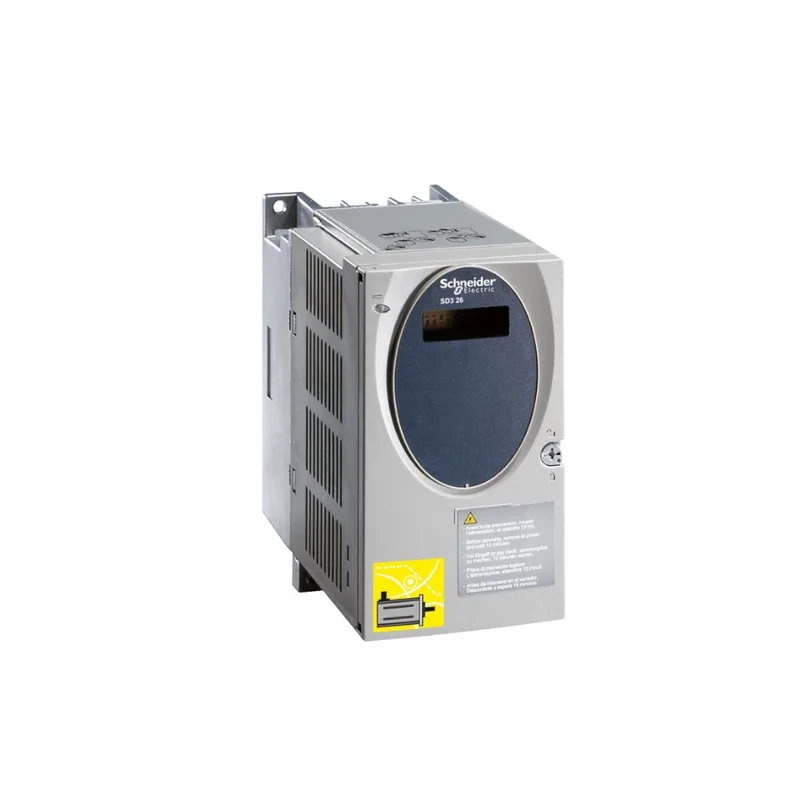

Schneider SD326RU25S2 Lexium SD3 stepper drive, 240 V, 2.5 A, discontinued

MPNSD326RU25S2
Active

Schneider Electric Lexium SD3 SD326RU25S2 motion stepper drive, single-phase 240 V supply, 2.5 A output, pulse/direction and integrated control, IP20, fan-cooled, discontinued.

$1,323.00 – $2,217.78Ref. price · indicative, final on quote
Schneider Electric SD326RU25S2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

SD326RU25S2 — Electrical
ParameterValue
PhaseSingle phase
SD326RU25S2 — Other specifications
ParameterValue
Range of productLexium SD3
Device short nameSD326
Function availableRotation monitoring Holding brake monitoring
Current consumption3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Format of the driveBlock
Supply voltage typeAC/DC
Vibration resistance1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6
Supply voltage limits200...240 V 100...120 V
Communication interfacePulse/direction, Integrated
IP degree of protectionIP20 On upper part: IP40 (without removal of protective film)
Network frequency limits50...60 Hz - 15...10 %)
Product or component typeMotion stepper drive
Supply voltage100...120 V - 15...10 % 200...230 V - 15...10 %
Maximum motor phase current2.5 A

Product details

Overview

The SD326RU25S2 is a Schneider Lexium SD3 motion stepper drive accepting single-phase 240 V input and delivering up to 2.5 A to the motor phase. It uses pulse/direction and integrated control protocols, is fan-cooled, and carries an IP20 rating.

Schneider has discontinued the SD326RU25S2.

Comparison with SD315DN10B400

The SD326RU25S2 runs on 240 V single-phase and outputs 2.5 A, while the SD315DN10B400 operates at 60 V and delivers 10.0 A. The SD326RU25S2 is a motion stepper drive; the SD315DN10B400 is a stepper motor driver. Choose the SD315DN10B400 when the motor requires higher phase current and a lower supply voltage.

MPN
SD326RU25S2
