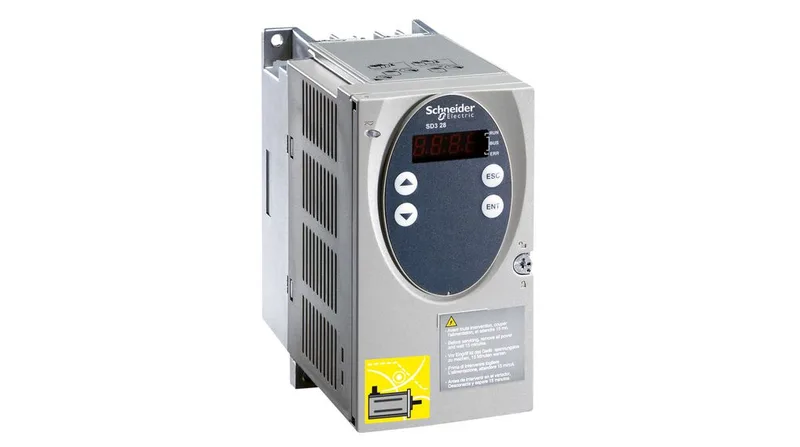

Schneider Electric SD328AU25S2
MPNSD328AU25S2
Obsolete
motion control stepper motor drive - SD328 - <= 2.5 A|motion control stepper motor drive - SD328 - <= 2.5 A
$511.81 – $1,327.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | Single phase |
| Parameter | Value |
|---|---|
| Protocol | Fieldbus |
| Range of product | Lexium SD3 |
| Device short name | SD328 |
| Current consumption | 3 A 230 V main supply 4 A 115 V main supply 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm) |
| Format of the drive | Block |
| Supply voltage type | AC/DC |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Supply voltage limits | 200...240 V 100...120 V |
| Communication interface | CANopen, Integrated Analogue input, Integrated Modbus, Integrated |
| IP degree of protection | IP20 On upper part: IP40 (without removal of protective film) |
| Network frequency limits | 50...60 Hz - 15...10 %) |
| Product or component type | Motion stepper drive |
| Supply voltage | 100...120 V - 15...10 % 200...230 V - 15...10 % |
| Maximum motor phase current | 2.5 A |
MPN
SD328AU25S2
