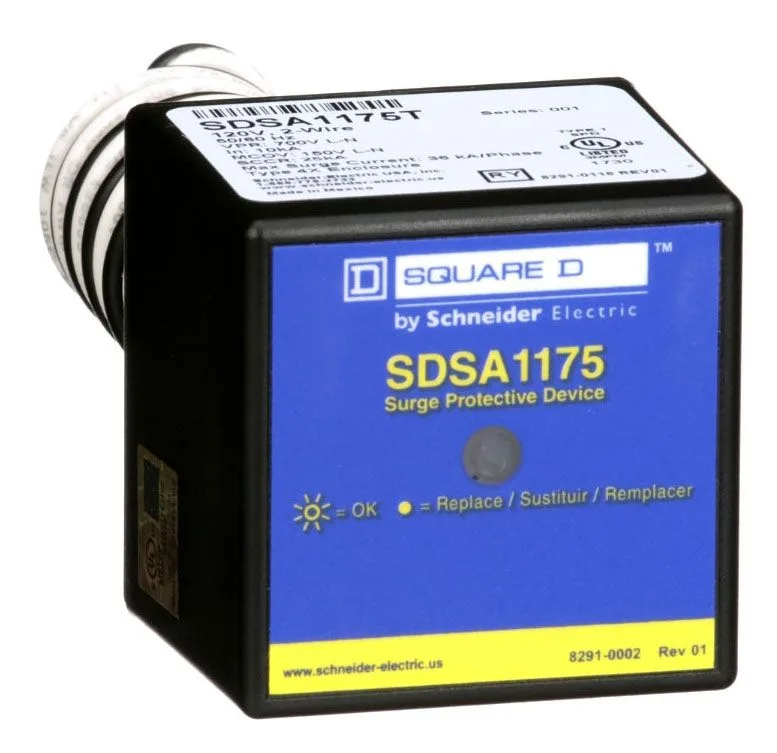

Schneider Electric SDSA1175T
MPNSDSA1175T
Active
Surge protection device, Surgelogic, 36kA, 120 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X|Surge protection device, Surgelogic, 36kA, 120 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X
$21.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 120 V AC |
| Surge current | 36 kA |
| Nominal discharge current | 10 kA |
| Phases | 1 phase |
| IP rating | NEMA 4X |
| Enclosure material | Black Plastic |
| Connection | Wire |
| Cable length | 24 in (609.6 mm) |
| Depth | 1.935 in (49.149 mm) |
| Width | 2.25 in (57.15 mm) |
| Height | 2.25 in (57.15 mm) |
| Standards | CSA C22.2 No 8 UL 1449:ed. 4 |
All specifications
| Parameter | Value |
|---|---|
| MCOV | 150 V |
| SCCR | 25 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08462 |
| Local signalling | Status LED |
| Wiring configuration | 3-wire |
MPN
SDSA1175T
