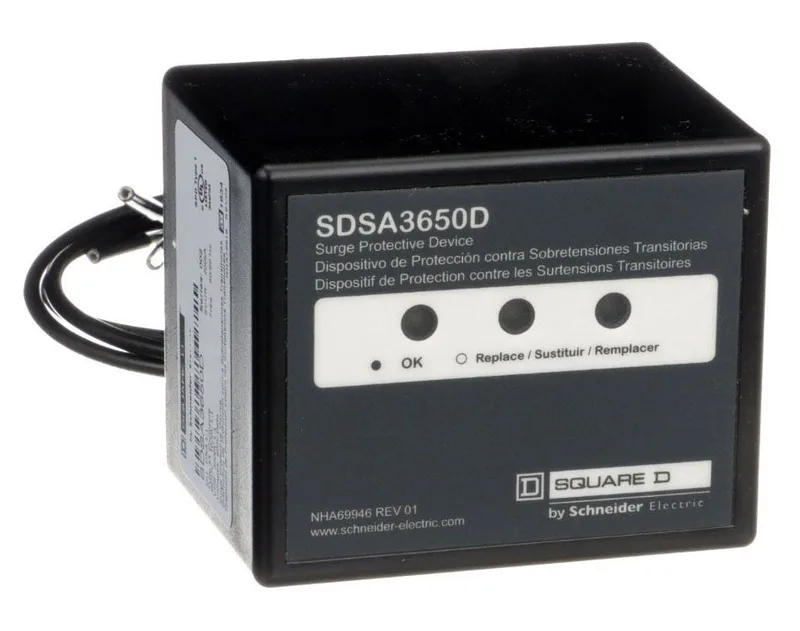

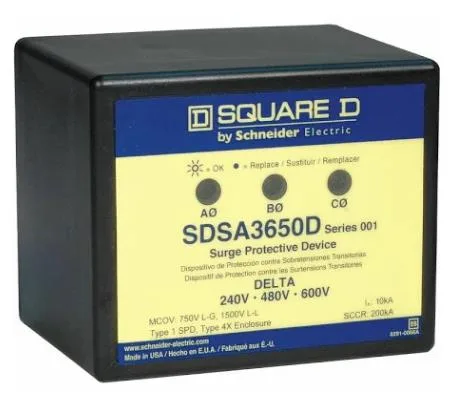

Schneider Electric SDSA3650D
MPNSDSA3650D
Active
Surge protection device, Surgelogic, 40kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X|Surge protection device, Surgelogic, 40kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X
$245.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 600 V delta AC |
| Surge current | 50 kA per phase |
| Nominal discharge current | 10 kA |
| Phases | 3 phase |
| IP rating | NEMA 4X |
| Enclosure material | Black Plastic |
| Cable length | 24 in (609.6 mm) |
| Depth | 3.4 in (86.4 mm) |
| Width | 3.6 in (91.4 mm) |
| Height | 3 in (76.2 mm) |
| Standards | UL 1449:ed. 4: type I NEC 285: type I CSA C22.2 No 8 |
| MCOV | 1020 V |
All specifications
| Parameter | Value |
|---|---|
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08462 |
| Local signalling | Status LED green normal operation |
| Ambient operating | 149 °F (65 °C) |
| Wiring configuration | 3-wire |
MPN
SDSA3650D
