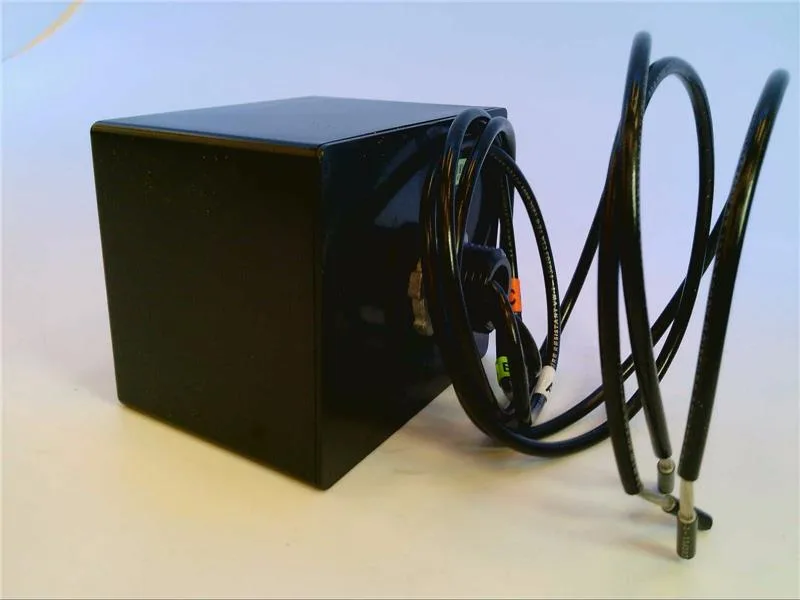

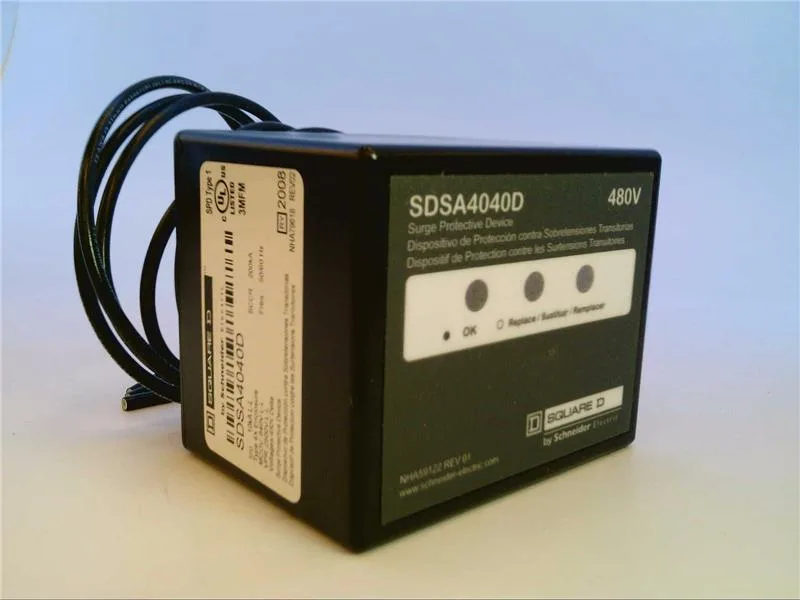

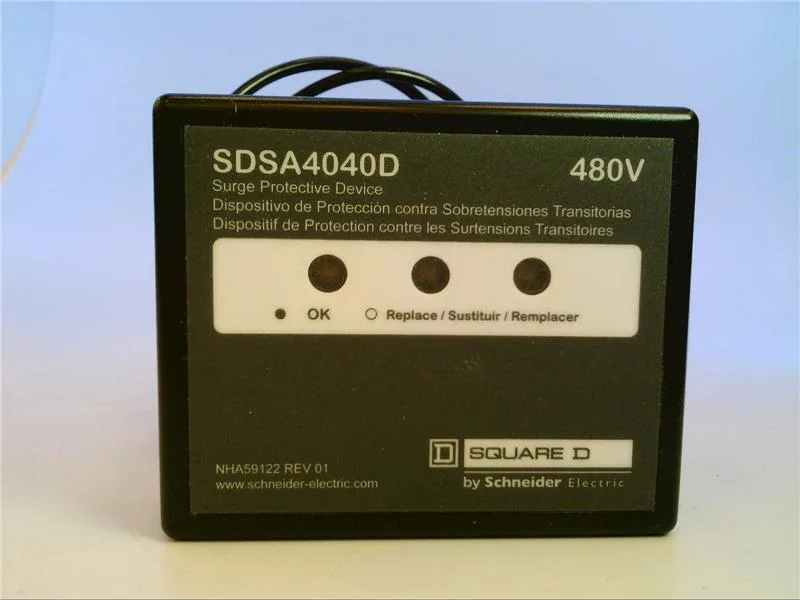

Schneider Electric SDSA4040D
MPNSDSA4040D
Active
SPD T1 SDSA 40KA 480V DELTA 3P3W|SPD T1 SDSA 40KA 480V DELTA 3P3W
$113.03Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 480 V delta AC |
| Surge current | 50 kA |
| Nominal discharge current | 10 kA |
| Phases | 3 phase |
| IP rating | NEMA 4X |
| Enclosure material | Black Plastic |
| Mounting support | Panel mounting |
| Connection | Wire AWG 12 copper |
| Cable length | 24 in (609.6 mm) |
| Depth | 2.6 in (67 mm) |
| Width | 3.6 in (92 mm) |
| Height | 3.07 in (78 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | UL 1449:ed. 4 CSA C22.2 No 8:1986 |
| MCOV | 180 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08462 |
| Local signalling | Status LED normal operation |
| Ambient operating | 149 °F (65 °C) |
| Wiring configuration | 3-wire |
MPN
SDSA4040D
