Schneider Electric SE10C306
MPNSE10C306
Active

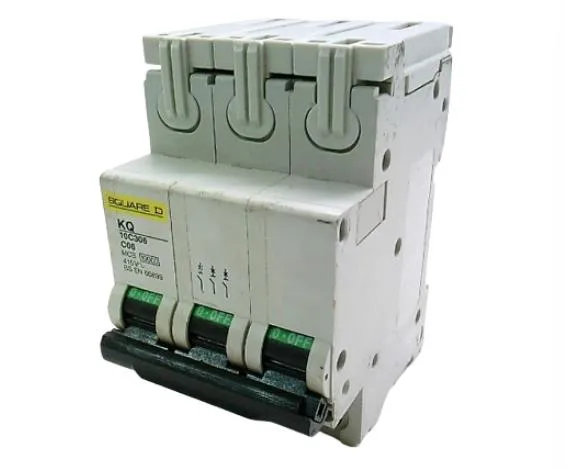

SE10C306 - MINIATURE by SCHNEIDER ELECTRIC
$64.77Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Breaking capacity | 10000 A Icn at 415 V AC 50/60 Hz conforming to EN 60898-1 |
| Current | 6 A |
| [Ics] rated service breaking capacity | 7500 A conforming to EN 60898-1 - 415 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Number of protected poles | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Plug-on |
| Mounting support | Rail |
| Wire stripping length | 14 mm for bottom connection |
| Connections - terminals | Single terminal (bottom) 1...25 mm² rigid Single terminal (bottom) 1...16 mm² flexible |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Depth | 78.5 mm |
| Width | 54 mm |
| Color | White |
| Height | 85 mm |
| Electrical durability | 10000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60898-1 |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 6 |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| Local signalling | Trip indicator |
| Tightening torque | 2 N.m bottom |
| Overvoltage category | III |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 5...10 x In |
| Earth-leakage protection | Without |
| Contact position indicator | Yes |
MPN
SE10C306
