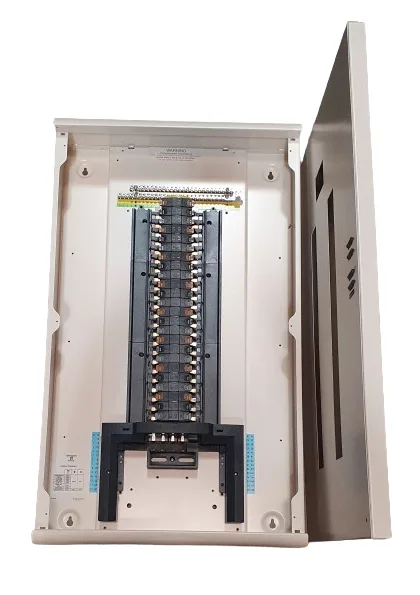

Schneider Electric SEA9BPN16
MPNSEA9BPN16
Active
SEA9BPN16 - ACTI 9 RANGE by SCHNEIDER ELECTRIC
$571.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure type | Standard |
| Product or component type | Distribution board |
| Voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Breaking capacity | 25 kA |
| [Ie] rated operational current | 250 A at 400/415 V AC 250 A at 230/240 V AC |
| Poles description | 3P + N |
| Enclosure material | Steel |
| Enclosure mounting | Surface |
| IK degree of protection | IK05 |
| IP degree of protection | IP2X without cover internal conforming to BS EN 60529 IP3x with cover external conforming to BS EN 60529 |
| Depth | 139 mm |
All specifications
| Parameter | Value |
|---|---|
| Width | 470 mm |
| Color | Cream (RAL 9001) |
| Height | 808 mm |
| Product weight | 16 kg |
| Standards | BS EN 61439-3 |
| Range | Acti9 |
| Number of ways | 16 ways (3P) outgoer |
| Surface finish | Powder paint |
| Surface treatment | Epoxy |
| Device application | Distribution |
| Provided equipment | Earth stud Enclosure Door Front cover Pan assembly Neutral terminal block Earth terminal block Blanking plate Removable gland plates |
| Overvoltage category | IV |
| Incomer device options | Switch disconnector - 3P + N Switch disconnector - 4P MCCB - 4P Terminal block - 4P Contactor - 4P RCCB - 4P |
| Ambient air temperature for storage | -40...80 °C |
| Protection device options at outgoer | Miniature circuit breaker (MCB) 63 A Residual current circuit breaker with overcurrent protection (RCBO) 45 A 100 mA Residual current circuit breaker with overcurrent protection (RCBO PoN) 45 A 100 mA |
| Ambient air temperature for operation | -35...70 °C |
MPN
SEA9BPN16
