Schneider Electric SEA9NA14
MPNSEA9NA14
Active
SEA9NA14 by SCHNEIDER ELECTRIC
$70.17Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Door type | Overall |
| Range of product | Acti9 |
| Product or component type | Neutral bar |
| Breaking capacity | 25 kA |
| [Ie] rated operational current | 125 A at 230/240 V AC 125 A at 110 V AC |
| Poles description | 1P + N |
| Enclosure material | Steel |
| Enclosure mounting | Wall mounted |
| IK degree of protection | IK05 conforming to BS EN 60529 |
| IP degree of protection | IP2X internal conforming to BS EN 60529 |
| Color | White (RAL 9001) |
| Standards | BS EN 60439-3 |
All specifications
| Parameter | Value |
|---|---|
| Number of ways | 14 ways outgoer |
| Surface finish | Powder paint |
| Surface treatment | Epoxy |

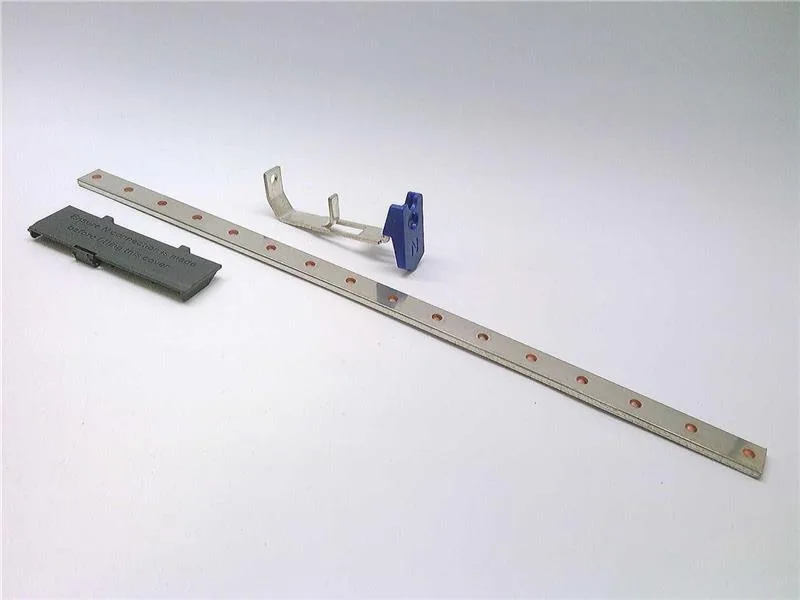

| Provided equipment | Neutral bar Busbar link 4 Cover |
| Product destination | Distribution board |
| Protection device name | IC60H |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -35...70 °C |
MPN
SEA9NA14
