Schneider Electric SH30552P01F2000
MPNSH30552P01F2000
Active

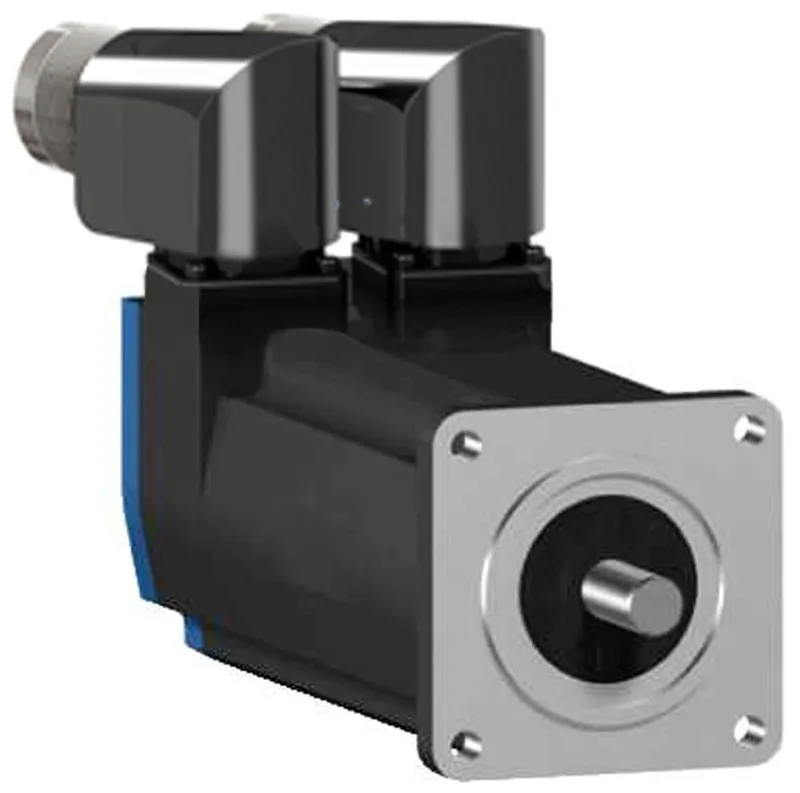

Square D SH30552P01F2000 Servo Motor|Square D SH30552P01F2000 Servo Motor
$1,024.89 – $1,920.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 4.8 A |
| Output current 3s peak | 4.8 A |
| Continuous stall current | 1.2 A |
| Continuous power | 530 W |
| Nominal output power | 160 W 115 V single phase 310 W 230 V single phase 600 W 400 V three phase 670 W 480 V three phase |
| Number of motor poles | 3.0 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 2.5 in (63 mm) |
| Electrical connection | Rotatable right angled connector |
| Centring collar depth | 0.08 in (2 mm) |
| Length | 7.1 in (181 mm) |
| Inertia | 0.021 kg.cm² of brake 0.096 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 0.8 in (20 mm) |
| Holding brake | With |
| Nominal speed | 2000 rpm 115 V single phase 4000 rpm 230 V single phase 8000 rpm 400 V three phase 8000 rpm 480 V three phase |
| Rotor inertia | 0.117 kg.cm² |
| Holding torque | 7.08 lbf.in (0.8 N.m) |
| Nominal torque | 6.82 lbf.in (0.77 N.m) 115 V single phase 6.64 lbf.in (0.75 N.m) 230 V single phase 5.58 lbf.in (0.63 N.m) 400 V three phase 5.58 lbf.in (0.63 N.m) 480 V three phase |
| Shaft diameter | 0.4 in (9 mm) |
| Torque constant | 0.59 N.m/A 248 °F (120 °C) |
| Sizing reference | SH30552P |
| Back emf constant | 40 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 2.2 in (55 mm) |
| Peak stall torque | 22.1 lbf.in (2.5 N.m) 115...480 V three phase |
| Stator inductance | 18.2 mH |
| Stator resistance | 17.4 Ohm |
| Maximum axial force fa | 40 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 6.28 lbf.in (0.71 N.m) 115...480 V three phase |
| Maximum radial force fr | 370 N 1000 rpm 290 N 2000 rpm 260 N 3000 rpm 230 N 4000 rpm 220 N 5000 rpm 200 N 6000 rpm 190 N 7000 rpm 190 N 8000 rpm |
| Centring collar diameter | 1.6 in (40 mm) |
| Maximum mechanical speed | 9000 rpm |
| Speed feedback resolution | 128 periods |
MPN
SH30552P01F2000
