Schneider Electric SH30701P02A1200
MPNSH30701P02A1200
Active

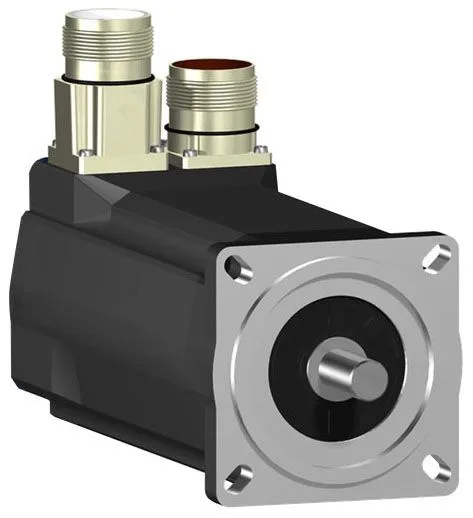

Square D SH30701P02A1200 1 4Nm No Key Mlt No Brk Str. Con Ip65/Ip67|Square D SH30701P02A1200 1,4Nm,No Key,Mlt,No Brk,Str. Con,Ip65/Ip67
$2,025.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 5.7 A |
| Output current 3s peak | 5.7 A |
| Continuous stall current | 1.8 A |
| Continuous power | 690 W |
| Nominal output power | 220 W 115 V single phase 440 W 230 V single phase 820 W 400 V three phase 950 W 480 V three phase |
| Number of motor poles | 3.0 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 IP67 housing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Electrical connection | Rotatable right angled connector |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 6.06 in (154 mm) |
| Inertia | 0.0 kg.cm² of brake 0.25 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | Without |
| Nominal speed | 1500 rpm 115 V single phase 3000 rpm 230 V single phase 6000 rpm 400 V three phase 7200 rpm 480 V three phase |
| Rotor inertia | 0.25 kg.cm² |
| Nominal torque | 12.4 lbf.in (1.4 N.m) 115 V single phase 12.4 lbf.in (1.4 N.m) 230 V single phase 9.7 lbf.in (1.1 N.m) 400 V three phase 9.7 lbf.in (1.1 N.m) 480 V three phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 0.69 N.m/A 248 °F (120 °C) |
| Sizing reference | SH30701P |
| Back emf constant | 46 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 31.0 lbf.in (3.5 N.m) 115...480 V three phase |
| Stator inductance | 21.3 mH |
| Stator resistance | 10.4 Ohm |
| Maximum axial force fa | 80 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 11.06 lbf.in (1.25 N.m) 115...480 V three phase |
| Maximum radial force fr | 660 N 1000 rpm 520 N 2000 rpm 460 N 3000 rpm 410 N 4000 rpm 380 N 5000 rpm 360 N 6000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 8000 rpm |
| Speed feedback resolution | 128 periods |
