Schneider Electric SH31001P02F1000
MPNSH31001P02F1000
Active

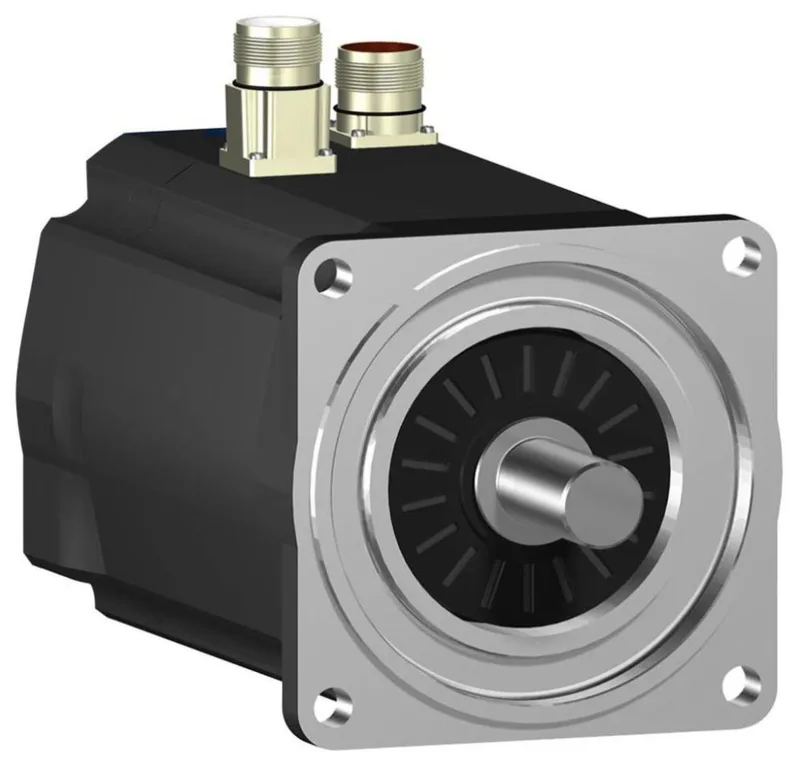

Square D SH31001P02F1000 3 3Nm No Key Mlt Brk Str. Con Ip54/Ip65|Square D SH31001P02F1000 3,3Nm,No Key,Mlt,Brk,Str. Con,Ip54/Ip65
$2,610.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 12.0 A |
| Output current 3s peak | 12.0 A |
| Continuous stall current | 3.5 A |
| Continuous power | 1190 W |
| Nominal output power | 410 W 115 V single phase 790 W 230 V single phase 1410 W 400 V three phase 1630 W 480 V three phase |
| Number of motor poles | 4.0 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Straight connector |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 7.9 in (199.5 mm) |
| Inertia | 0.618 kg.cm² of brake 1.4 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | With |
| Nominal speed | 1250 rpm 115 V single phase 2500 rpm 230 V single phase 5000 rpm 400 V three phase 6000 rpm 480 V three phase |
| Rotor inertia | 2.018 kg.cm² |
| Holding torque | 79.7 lbf.in (9 N.m) |
| Nominal torque | 25.76 lbf.in (2.91 N.m) 115 V single phase 23.37 lbf.in (2.64 N.m) 230 V single phase 20.09 lbf.in (2.27 N.m) 400 V three phase 20.09 lbf.in (2.27 N.m) 480 V three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 0.84 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31001P |
| Back emf constant | 60 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 85.0 lbf.in (9.6 N.m) 115...480 V three phase |
| Stator inductance | 9.5 mH |
| Stator resistance | 3.8 Ohm |
| Maximum axial force fa | 160 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 26.02 lbf.in (2.94 N.m) 115...480 V three phase |
| Maximum radial force fr | 900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm 570 N 4000 rpm 530 N 5000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 128 periods |
