Schneider SH31003P1BA3000 Motors — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn Hiperface DSL |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 28.3 A |
| Continuous stall current | 6.6 A |
| Continuous power | 2400 W |
| Nominal output power | 1470 W 230 V single phase 2390 W 400 V three phase 2390 W 480 V three phase |
| Number of motor poles | 4 |
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5 IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Parameter | Value |
|---|---|
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | quicklock straight connector |
| Key width | 0.2 in (6 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 9.5 in (240.5 mm) |
| Category | US1PC5218359 |
| Shaft end | Parallel key |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | Without |
| Nominal speed | 2000 rpm 230 V single phase 4000 rpm 400 V three phase 4800 rpm 480 V three phase |
| Rotor inertia | 3.22 kg.cm² |
| Nominal torque | 62.0 lbf.in (7 N.m) 230 V single phase 50.4 lbf.in (5.7 N.m) 400 V three phase 45.1 lbf.in (5.1 N.m) 480 V three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.22 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31003P |
| Back emf constant | 77 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 250.5 lbf.in (28.3 N.m) 115...480 V three phase |
| Stator inductance | 9.4 mH |
| Stator resistance | 1.43 Ohm |
| Maximum axial force fa | 740 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 70.8 lbf.in (8 N.m) 115...480 V three phase |
| Maximum radial force fr | 4500 N 1000 rpm 3570 N 2000 rpm 3120 N 3000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 262144 points/turn x 4096 turns |

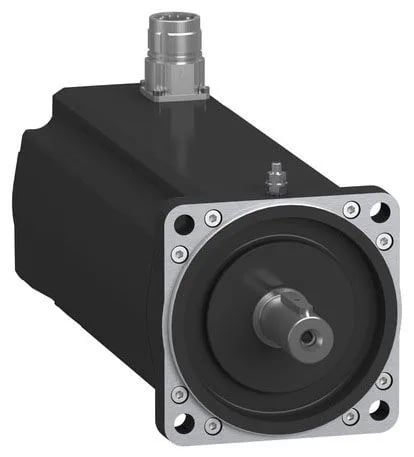

The SH31003P1BA3000 is a Schneider PacDrive 3 servo motor with a 4-pole design, rated for 28.3 A max current and 6000 rpm top speed, delivering 8 N.m of torque on a 100 mm frame. It carries an absolute multiturn Hiperface DSL encoder resolving 262144 points per turn over 4096 turns, sealed to IP65 with a parallel key shaft and no holding brake.
