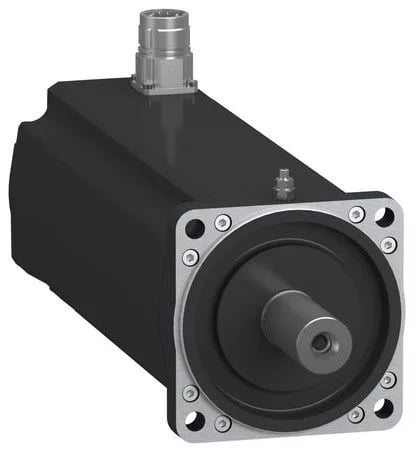

Schneider Electric PacDrive 3 SH31004P0BA3000 servo motor, 4-pole, three-phase, 2500 W, 10 N.m torque, 6000 rpm, 32.3 A, IP65, absolute multiturn Hiperface DSL encoder, smooth shaft, without holding brake.
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn Hiperface DSL |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 32.3 A |
| Continuous stall current | 6.2 A |
| Continuous power | 2500 W |
| Nominal output power | 1490 W 230 V single phase 2480 W 400 V three phase 2480 W 480 V three phase |
| Number of motor poles | 4 |
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5 IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Parameter | Value |
|---|---|
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | quicklock straight connector |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 10.9 in (276.5 mm) |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | Without |
| Nominal speed | 1500 rpm 230 V single phase 3000 rpm 400 V three phase 3600 rpm 480 V three phase |
| Rotor inertia | 4.22 kg.cm² |
| Nominal torque | 84.08 lbf.in (9.5 N.m) 230 V single phase 69.9 lbf.in (7.9 N.m) 400 V three phase 61.07 lbf.in (6.9 N.m) 480 V three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 1.62 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31004P |
| Back emf constant | 103 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 358.5 lbf.in (40.5 N.m) 115...480 V three phase |
| Stator inductance | 13 mH |
| Stator resistance | 1.8 Ohm |
| Maximum axial force fa | 20 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 88.5 lbf.in (10 N.m) 115...480 V three phase |
| Maximum radial force fr | 100 N 3000 rpm 145 N 1000 rpm 115 N 2000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 262144 points/turn x 4096 turns |
The SH31004P0BA3000 is a Schneider PacDrive 3 servo motor rated 2500 W, delivering 10 N.m continuous torque with a top speed of 6000 rpm and a peak current draw of 32.3 A. It carries an absolute multiturn Hiperface DSL encoder resolving 262144 points per turn over 4096 turns, sealed to IP65 on the motor body with an IP54 shaft bushing, and ships with a smooth shaft and no holding brake.
