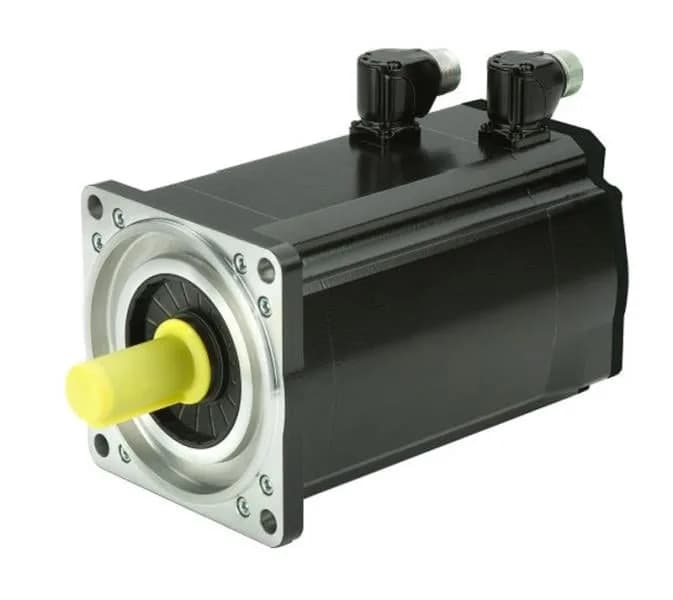

Schneider Electric SH31004P11A2000
MPNSH31004P11A2000
Active
Square D SH31004P11A2000 65013402V004003|Square D SH31004P11A2000 65013402V004003
$1,741.17 – $3,040.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 32.3 A |
| Output current 3s peak | 32.3 A |
| Continuous stall current | 6.2 A |
| Continuous power | 2500 W |
| Nominal output power | 780 W 115 V single phase 1490 W 230 V single phase 2480 W 400 V three phase 2600 W 480 V three phase |
| Number of motor poles | 4.0 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | rotatable right angled connector |
| Key width | 0.3 in (8 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 10.9 in (276.5 mm) |
| Inertia | 0.0 kg.cm² of brake 4.22 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Parallel key |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | Without |
| Nominal speed | 750 rpm 115 V single phase 1500 rpm 230 V single phase 3000 rpm 400 V three phase 3600 rpm 480 V three phase |
| Rotor inertia | 4.22 kg.cm² |
| Nominal torque | 87.6 lbf.in (9.9 N.m) 115 V single phase 84.08 lbf.in (9.5 N.m) 230 V single phase 69.9 lbf.in (7.9 N.m) 400 V three phase 61.07 lbf.in (6.9 N.m) 480 V three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 1.62 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31004P |
| Back emf constant | 103 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 358.5 lbf.in (40.5 N.m) 115...480 V three phase |
| Stator inductance | 6.5 mH |
| Stator resistance | 1.81 Ohm |
| Maximum axial force fa | 160 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 88.5 lbf.in (10 N.m) 115...480 V three phase |
| Maximum radial force fr | 1070 N 1000 rpm 850 N 2000 rpm 740 N 3000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 128 periods |
MPN
SH31004P11A2000
