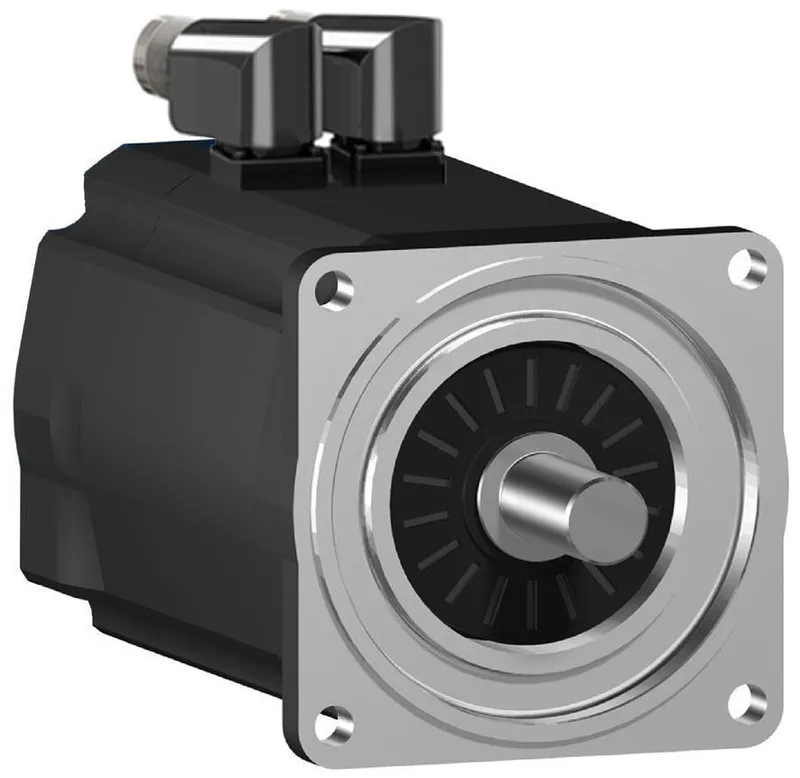

Schneider Electric SH31401P02F2000
MPNSH31401P02F2000
Active
SH31401P02F2000 - 1NM by SCHNEIDER ELECTRIC
$2,528.57Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 20.8 A |
| Output current 3s peak | 20.8 A |
| Continuous stall current | 7.8 A |
| Continuous power | 2900 W |
| Nominal output power | 860 W 115 V single phase 1670 W 230 V single phase 2890 W 400 V three phase 3170 W 480 V three phase |
| Number of motor poles | 5.0 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (11 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Electrical connection | Rotatable right angled connector |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 10.06 in (255.5 mm) |
| Inertia | 1.8 kg.cm² of brake 7.41 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | With |
| Nominal speed | 750 rpm 115 V single phase 1500 rpm 230 V single phase 3000 rpm 400 V three phase 3600 rpm 480 V three phase |
| Rotor inertia | 9.21 kg.cm² |
| Holding torque | 203.6 lbf.in (23 N.m) |
| Nominal torque | 96.92 lbf.in (10.95 N.m) 115 V single phase 93.8 lbf.in (10.6 N.m) 230 V single phase 81.4 lbf.in (9.2 N.m) 400 V three phase 74.3 lbf.in (8.4 N.m) 480 V three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 1.43 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31401P |
| Back emf constant | 100 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 5.5 in (140 mm) |
| Peak stall torque | 239.0 lbf.in (27 N.m) 115...480 V three phase |
| Stator inductance | 8.17 mH |
| Stator resistance | 1.41 Ohm |
| Maximum axial force fa | 300 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 98.2 lbf.in (11.1 N.m) 115...480 V three phase |
| Maximum radial force fr | 1930 N 1000 rpm 1530 N 2000 rpm 1340 N 3000 rpm |
| Centring collar diameter | 5.1 in (130 mm) |
| Maximum mechanical speed | 4000 rpm |
| Speed feedback resolution | 128 periods |
MPN
SH31401P02F2000
