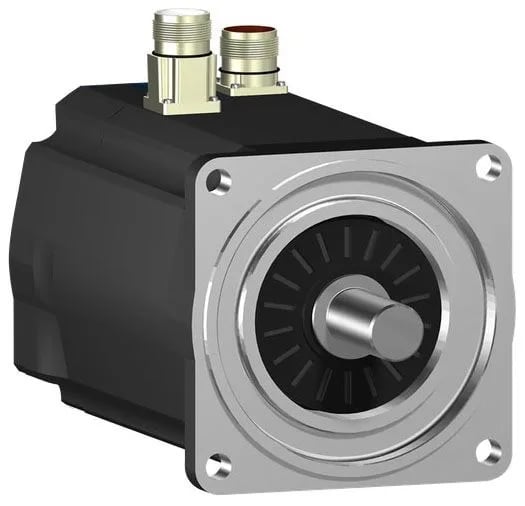

Schneider Electric SH31402P02F1000
MPNSH31402P02F1000
Active
Square D SH31402P02F1000 19 5Nm No Key Mlt Brk Str. Con Ip54/Ip65|Square D SH31402P02F1000 19,5Nm,No Key,Mlt,Brk,Str. Con,Ip54/Ip65
$4,175.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 115...480 V |
| Maximum current irms | 44.1 A |
| Output current 3s peak | 44.1 A |
| Continuous stall current | 13.2 A |
| Continuous power | 3900 W |
| Nominal output power | 1460 W 115 V single phase 2690 W 230 V single phase 3860 W 400 V three phase 3660 W 480 V three phase |
| Number of motor poles | 5 |
| Phases | Three phase |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (11 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Electrical connection | Straight connector |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 12.2 in (310.5 mm) |
| Inertia | 1.8 kg.cm² of brake 12.68 kg.cm² of motor |
| Category | US1PC5218359 |
| Shaft end | Smooth shaft |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | With |
| Nominal speed | 750 rpm 115 V single phase 1500 rpm 230 V single phase 3000 rpm 400 V three phase 3600 rpm 480 V three phase |
| Rotor inertia | 14.48 kg.cm² |
| Holding torque | 203.6 lbf.in (23 N.m) |
| Nominal torque | 164.6 lbf.in (18.6 N.m) 115 V single phase 151.3 lbf.in (17.1 N.m) 230 V single phase 108.9 lbf.in (12.3 N.m) 400 V three phase 85.9 lbf.in (9.7 N.m) 480 V three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 1.47 N.m/A 248 °F (120 °C) |
| Sizing reference | SH31402P |
| Back emf constant | 101 V/krpm 68 °F (20 °C) |
| Device short name | SH3 |
| Motor flange size | 5.5 in (140 mm) |
| Peak stall torque | 531.9 lbf.in (60.1 N.m) 115...480 V three phase |
| Stator inductance | 3.855 mH |
| Stator resistance | 0.6 Ohm |
| Maximum axial force fa | 300 N |
| Temperature copper hot | 266 °F (130 °C) |
| Continuous stall torque | 172.6 lbf.in (19.5 N.m) 115...480 V three phase |
| Maximum radial force fr | 2240 N 1000 rpm 1780 N 2000 rpm 1550 N 3000 rpm |
| Centring collar diameter | 5.1 in (130 mm) |
| Maximum mechanical speed | 4000 rpm |
| Speed feedback resolution | 128 periods |
MPN
SH31402P02F1000
