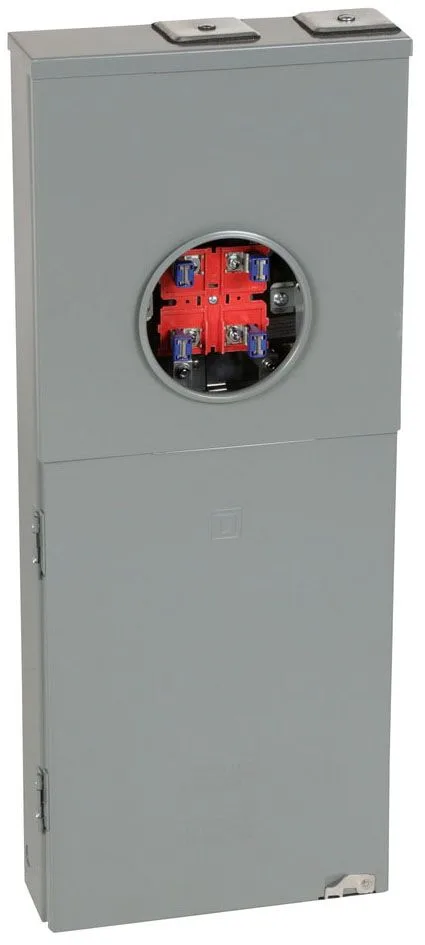

Schneider Electric SO2040M200S
MPNSO2040M200S
Active
SQD SO2040M200S ALL-IN-ONE RING|SQD SO2040M200S ALL-IN-ONE RING TYPE SURFACE OH 200A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Hub type | A |
| Bypass type | No bypass |
| Range of product | Homeline |
| Meter socket type | Ringed |
| Product or component type | All-In-One |
| Line rated current | 200 A |
| Short-circuit current | 22 kA |
| NEMA rating | NEMA 3R |
| Mounting | Surface |
| Wire AWG | AWG 6...350 kcmil (aluminium) line side AWG 6...350 kcmil (copper) line side AWG 8...AWG 2/0 (aluminium) service ground AWG 8...AWG 2/0 (copper) service ground |
| Electrical connection | Lugs, line side Lugs, service ground |
| Connections - terminals | Lugs |
All specifications
| Parameter | Value |
|---|---|
| Depth | 5.32 in (135.13 mm) |
| Width | 18.35 in (466.09 mm) |
| Height | 40.93 in (1039.62 mm) |
| Category | US1DE3A00148 |
| Bus rating | 200.0 A |
| Disconnect | Service disconnect (factory installed) |
| Number of spaces | 20 |
| Disconnect rating | 200 A |
| Tightening torque | Main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper Branch lugs 50 lb.in, AWG 14...AWG 1/0, copper Branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium Branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper Branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper Branch lugs 40 lb.in, AWG 8, aluminium/copper Branch lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper Branch lugs 35 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in |
| Number of circuits | 40 |
| Branch breaker rating | 200 A |
| Service feed location | OH |
| Number of tandem breakers | 20 |
MPN
SO2040M200S
