SSD1A335BDC1 - Schneider Electric
MPNSSD1A335BDC1
Active

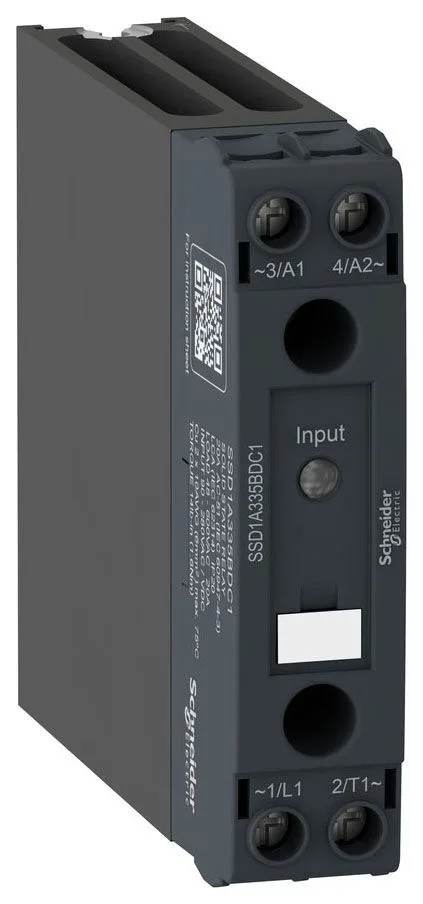

HARMONY SOLID STATE RELAY 35 A DIN RAIL MOUNT ZERO VOLTAGE SWITCHING INPUT 4 32 V DC OUTPU|HARMONY SOLID STATE RELAY 35 A DIN RAIL MOUNT ZERO VOLTAGE SWITCHING INPUT 4 32 V DC OUTPUT 48 600 V AC
$36.83 – $73.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Solid State Relays |
| Product or component type | Modular DIN rail relay |
| Product configuration type | Relay configuration |
| Solid state switching type | Zero voltage switching |
| Output voltage | 48...600 V AC |
| Pick-Up voltage | 4 V DC turn-on |
| Drop-Out voltage | 1 V DC turn-off |
| Maximum voltage drop | <1.15 V on-state |
| Control circuit voltage | 4...32 V DC |
| Voltage | 6 kV for input/output circuit 6 kV for input or output to case |
| Load current | 0.15...35 A |
| Current | 35 A |
All specifications
| Parameter | Value |
|---|---|
| Inrush current | 1350 A at 60 Hz |
| Input current range | 10...15 mA |
| Maximum leakage current | 1 mA off-state |
| Short circuit protection coordination | Type 1 Type 2 |
| Load power factor range | 0.5 with maximum load |
| Operating frequency | 47...440 Hz |
| Phases | 1 phase |
| Rated duty | Uninterrupted |
| IP degree of protection | IP20 |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input Screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output |
| Response time | 0.5 cycle (turn-on) 0.5 cycle (turn-off) |
| Pollution degree | 2 |
| Shock resistance | 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27 |
| Vibration resistance | 0.75 mm (f = 10...150 Hz) conforming to IEC 60068-2-6 |
| Depth | 4.6 in (116.5 mm) |
| Width | 0.9 in (22.5 mm) |
| Height | 3.7 in (93.2 mm) |
| Standards | IEC 61373:class B: category 1 IEC 60947-4-3 IEC 62314 IEC 60950-1 CSA C22.2 No 14-13 UL 508 |
| DV (dt) | 500 V/µs off-state at maximum rated voltage |
| Category | US10CP222375 |
| Test button | Without test button |
| Local signalling | LED (green) for control voltage |
| Device short name | SSD1 |
| Tightening torque | 1.5...1.7 N.m for control input 13...15 lb.in for control input 1.5...1.7 N.m for load output 13...15 lb.in for load output |
| Channels | 1 |
| Device presentation | Complete product |
| Dielectric strength | 4 kV AC for input/output circuit 4 kV AC for input or output to case |
| Flammability rating | V-0 conforming to UL 94 |
| Overvoltage category | III |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Output switching mode | Zero voltage switching |
| Transient overvoltage | 1200 V |
| Maximum i2t for fusing | 8320 A².s for 10 ms 7593 A².s for 8.33 ms |
| Device form designation | Form 5 semiconductor output DOL contactor |
| Motor controller rating | 1.5 kW/2 hp at 120 V AC 3.73 kW/5 hp at 240 V AC 7.46 kW/10 hp at 480 V AC |
| Electromagnetic compatibility | Electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4 Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3 Surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 Radiated emission environment B for DC input supply conforming to IEC 60947-4-3 Conducted emission environment B for DC input supply conforming to IEC 60947-4-3 Immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11 |
| Ambient air temperature for storage | -40...212 °F (-40...100 °C) |
| Ambient air temperature for operation | -40...176 °F (-40...80 °C) |
