Schneider Electric SSD1A360BDC3

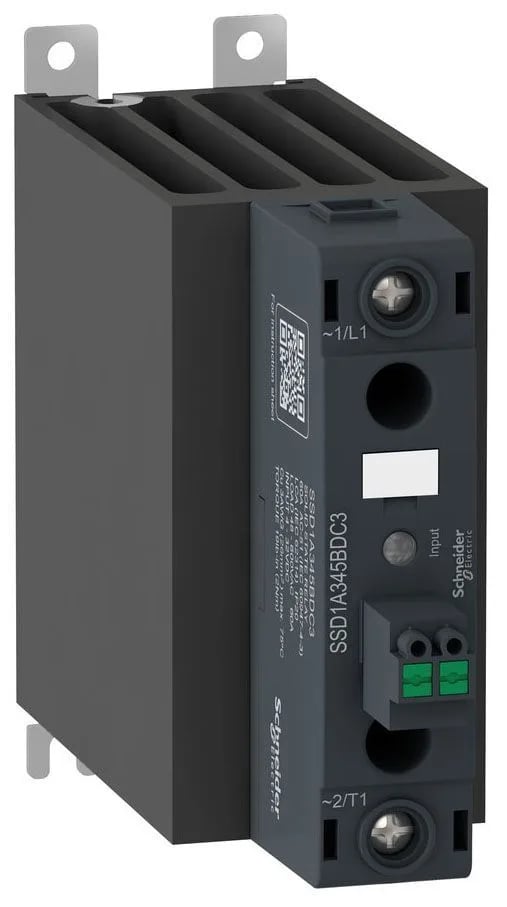

Schneider Electric SSD1A360BDC3 Harmony SSR Single-Phase 60A

MPNSSD1A360BDC3
Active

Schneider Electric Harmony Solid State Relays series, SSD1A360BDC3, single-phase SSR, 60 A rated current, 48-600 V AC output, zero-voltage switching, dv/dt 500 V/µs, control 4-32 V DC.

$53.34 – $107.09Ref. price · indicative, final on quote
Schneider Electric SSD1A360BDC3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SSD1A360BDC3 key specifications
ParameterValue
Range of productHarmony Solid State Relays
Product or component typeModular DIN rail relay
Product configuration typeContactor configuration with pluggable spring input
Solid state switching typeZero voltage switching
Output voltage48...600 V AC
Pick-Up voltage4 V DC turn-on
Drop-Out voltage1 V DC turn-off
Maximum voltage drop<1.2 V on-state
Control circuit voltage4...32 V DC
Voltage6 kV for input/output circuit 6 kV for input or output to case
Load current0.15...60 A
Current60 A

All specifications

SSD1A360BDC3 additional specifications
ParameterValue
Inrush current1350 A at 60 Hz
Input current range10...15 mA
Maximum leakage current1 mA off-state
Short circuit protection coordinationType 1 Type 2
Load power factor range0.5 with maximum load
Operating frequency47...440 Hz
Phases1 phase
Rated dutyUninterrupted
IP degree of protectionIP20
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Connections - terminalsPlug-inspring terminals, clamping connection capacity:0.13...3.30 mm², AWG 26...AWG 12 for input Clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
Response time0.5 cycle (turn-on) 0.5 cycle (turn-off)
Pollution degree2
Shock resistance50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
Vibration resistance0.35 mm (f = 10...150 Hz) conforming to IEC 60068-2-6
Depth6.08 in (154.4 mm)
Width1.8 in (45 mm)
Height4.4 in (111.5 mm)
StandardsIEC 61373:class B: category 1 IEC 60947-4-3 IEC 62314 IEC 60950-1 CSA C22.2 No 14-13 UL 508
DV (dt)500 V/µs off-state at maximum rated voltage
CategoryUS10CP222375
Test buttonWithout test button
Local signallingLED (green) for control voltage
Device short nameSSD1
Tightening torque2...2.2 N.m for load output 18...20 lb.in for load output
Channels1
Device presentationComplete product
Dielectric strength4 kV AC for input/output circuit 4 kV AC for input or output to case
Flammability ratingV-0 conforming to UL 94
Overvoltage categoryIII
Insulation resistance1000 MOhm at 500 V DC
Output switching modeZero voltage switching
Transient overvoltage1200 V
Maximum i2t for fusing8320 A².s for 10 ms 7593 A².s for 8.33 ms
Device form designationForm 5 semiconductor output DOL contactor
Motor controller rating1.5 kW/2 hp at 120 V AC 3.73 kW/5 hp at 240 V AC 7.46 kW/10 hp at 480 V AC
Electromagnetic compatibilityElectrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4 Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3 Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5 Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 Radiated emission environment B for DC input supply conforming to IEC 60947-4-3 Conducted emission environment B for DC input supply conforming to IEC 60947-4-3 Immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
Ambient air temperature for storage-40...212 °F (-40...100 °C)
Ambient air temperature for operation-40...176 °F (-40...80 °C)

Product details

Single-phase SSR, 60 A, zero-voltage switching

Schneider Electric Harmony SSD1A360BDC3 is a single-phase solid state relay rated 60 A continuous, 48-600 V AC output. Its zero-voltage switching mode eliminates turn-on transients, and the 500 V/µs off-state dv/dt handles inductive loads without false triggering. Control input 4-32 V DC draws 10-15 mA. Response time is fixed at 0.5 cycle on and off — deterministic to the line frequency.

Mounting and termination

Plug-in spring terminals for control input accept 0.13-3.3 mm²; clamp terminals for load output accept 10-26.67 mm². Depth 154.4 mm, width 45 mm, height 111.5 mm. Dielectric strength 4 kV AC between input/output and to case. Green LED indicates control voltage present.

Frequently asked questions

What is the dv/dt rating of SSD1A360BDC3?

The off-state dv/dt is 500 V/µs at maximum rated voltage, which prevents false turn-on from fast line transients.

What are the depth dimensions of SSD1A360BDC3?

Depth is 6.08 in (154.4 mm), width 1.8 in (45 mm), height 4.4 in (111.5 mm).

What compliance standards does SSD1A360BDC3 meet?

It complies with IEC 60947-4-3, UL 508, CSA C22.2 No 14-13, IEC 61373 class B category 1, IEC 62314, and IEC 60950-1.
