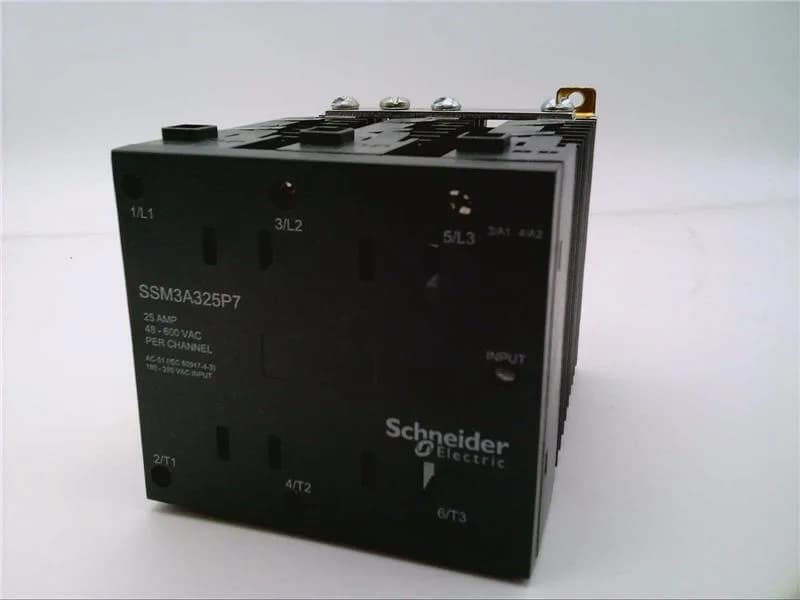

Schneider Electric SSM3A325P7
MPNSSM3A325P7
Active
Square D SSM3A325P7 Ssr 3 Ch 25A@48-600|Square D SSM3A325P7 Ssr 3 Ch 25A@48-600
$93.98 – $139.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Solid State Relays |
| Solid state output type | Zero voltage switching |
| Product or component type | Modular DIN rail relay |
| Output voltage | 48...600 V AC |
| Switching voltage | 10 V turn-off 180 V turn-on |
| Maximum voltage drop | <1.35 V on-state |
| Coil voltage | 180...280 V AC |
| Load current | 0.1...25 A |
| Input current | 19...24 mA |
| Surge current | 286 A 20 ms 50 Hz 300 A 16.6 ms 60 Hz |
| Line rated current | 25 A |
| Maximum leakage current | 0.25 mA off-state |
All specifications
| Parameter | Value |
|---|---|
| Power factor | 0.5 (with maximum load) |
| Maximum horse power rating | 1 hp 104 °F (40 °C) 240 V AC 2 hp 104 °F (40 °C) 380 V AC 3 hp 104 °F (40 °C) 480 V AC |
| Phases | 3 phase |
| IP degree of protection | IP20 |
| Mounting support | Symmetrical DIN rail |
| Connections - terminals | Screw terminals 0.2...1.3 mm², AWG 24...AWG 16) input Screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output |
| Response time | 30 ms (turn-off) 20 ms (turn-on) |
| Pollution degree | 2 |
| Width | 3.5 in (90 mm) |
| Standards | UL 508 IEC 60950-1 CSA C22.2 No 14 |
| DV (dt) | 500 V/µs off-state at maximum voltage |
| Marking | CSA CE EAC UL |
| Category | US10CP222375 |
| Test button | Without test button |
| Local signalling | LED (green) for input status |
| Device short name | SSM3 |
| Tightening torque | 0.6...0.7 N.m for input 1.36...1.7 N.m for output |
| Channels | 3 |
| Dielectric strength | 4 kV AC for input/output 4 kV AC for input or output to case |
| Maximum capacitance | 8 pF for input/output |
| Overvoltage category | III |
| Insulation resistance | 1000 MOhm |
| Output switching mode | Zero voltage switching |
| Transient overvoltage | 1100 V |
| Maximum i2t for fusing | 410 A².s for 10 ms at 50 Hz 374 A².s for 8.3 ms at 60 Hz |
| Ambient air temperature for storage | -40...212 °F (-40...100 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
SSM3A325P7
