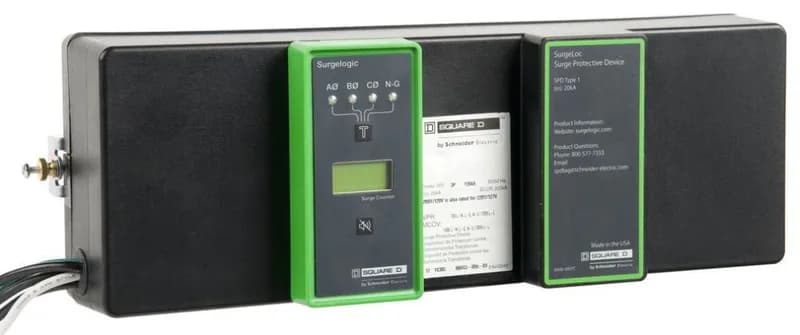

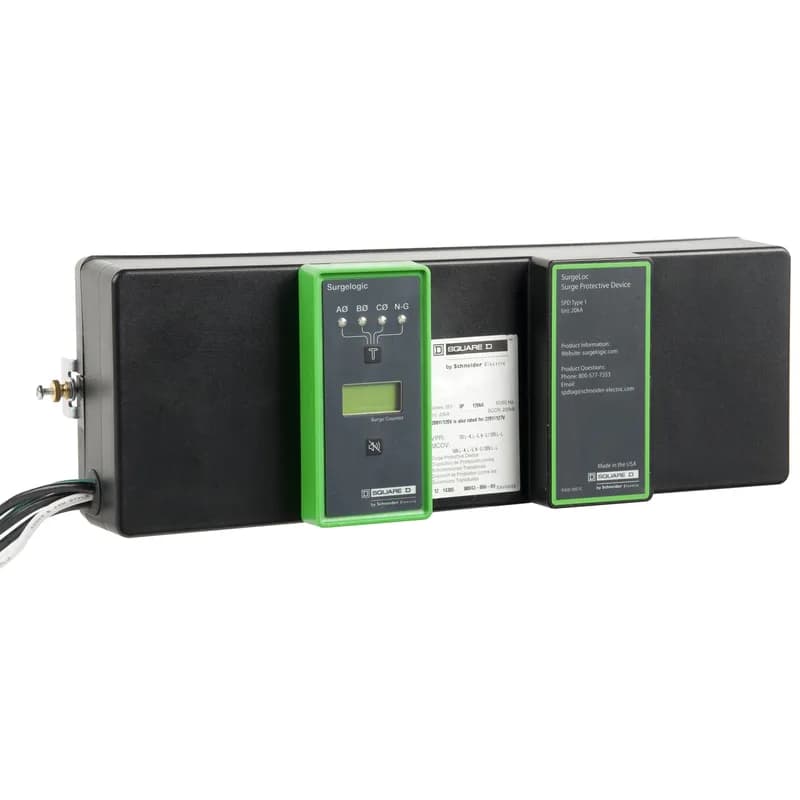

Schneider Electric SSP02SBA16D

Schneider Electric SSP02SBA16D Surgelogic SPD, 160kA

MPNSSP02SBA16D
Active

Schneider Electric Surgelogic SSP02SBA16D Type 1 surge protection device, 160 kA per phase, 208Y/120 V AC, 3-phase 4-wire, NEMA 1 enclosure.

$1,725.00 – $2,353.63Ref. price · indicative, final on quote
Schneider Electric SSP02SBA16D datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SSP02SBA16D specifications
ParameterValue
Type of packingBox
Voltage rating208Y/120 V AC
Voltage protection rating600 V N - G 700 V L-N 700 V L - G 1000 V L - L
Surge current160 kA per phase
Phases3 phase
IP ratingNEMA 1
Depth6.90 in (175.26 mm)
Width17.90 in (454.66 mm)
Height4.40 in (111.76 mm)
Weight8.09 lb(US) (3.67 kg)
MCOV150 V
SCCR200 kA
RangeSurgelogic
ProductSurge protection device
CategoryUS1DE1B08470
Wiring configuration4-wire

Product details

This Surgelogic SSP02SBA16D is a Type 1 surge protection device rated for 160 kA per phase on a 208Y/120 V AC 3-phase 4-wire system. MCOV sits at 150 V — right at the line-to-neutral ceiling for that voltage class, so keep the supply steady; sustained overvoltage will push past the MOV blocks. SCCR of 200 kA means it can ride out the fault current at the service entrance if it's coordinated with the upstream OCPD.

Rating context

Surge current per phase is 160 kA; SCCR is 200 kA. The NEMA 1 enclosure measures 4.40 x 17.90 x 6.90 in.

Frequently asked questions

What is the MCOV of the SSP02SBA16D?

Maximum continuous operating voltage is 150 V, matched to the 208Y/120 V system L-N voltage.

What is the SCCR of the SSP02SBA16D?

Short-circuit current rating is 200 kA. Coordinate with the upstream overcurrent device to maintain that rating.
