Schneider Electric SSP04EMA24F
MPNSSP04EMA24F
Obsolete

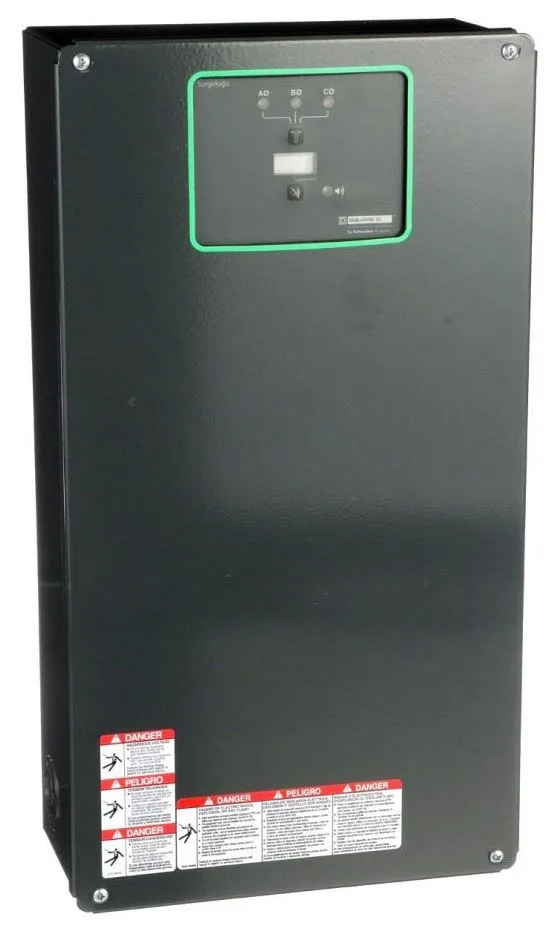

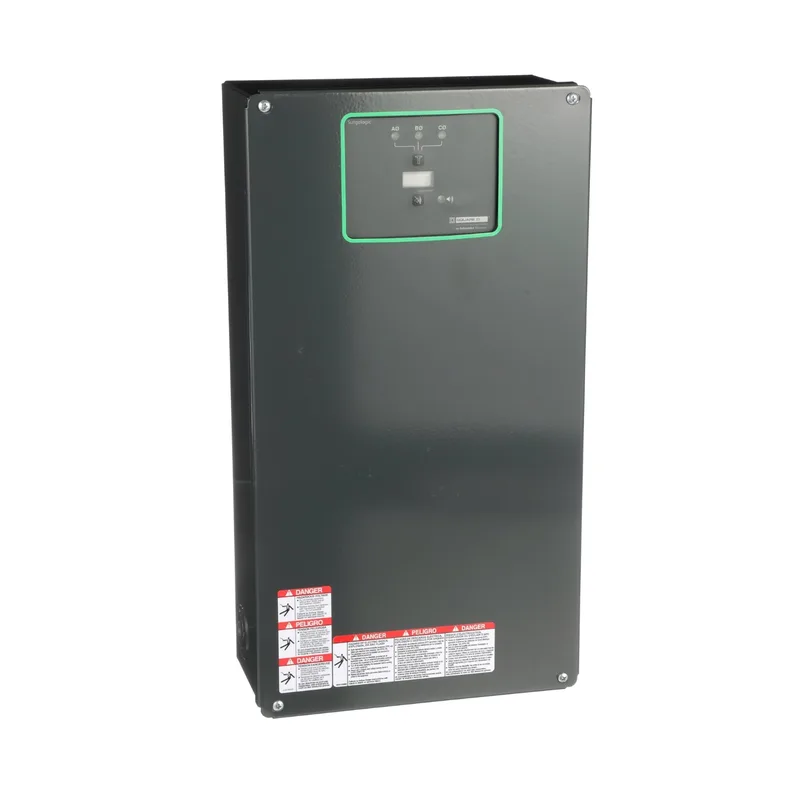

Square D SSP04EMA24F Surge Protection Device|Square D SSP04EMA24F Surge Protection Device
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 480Y/277 V AC |
| Surge current | 240 kA |
| Nominal discharge current | 20 kA |
| Phases | 3 phase |
| IP rating | NEMA 1 |
| Enclosure material | Gray painted sheet steel |
| Device mounting | Surface |
| Connection | Lugs AWG 10...AWG 2 copper 35.4 lbf.in (4 N.m) |
| Cable length | 19.02 in (483 mm) |
| Depth | 5.3 in (135 mm) |
| Width | 9.9 in (251 mm) |
| Height | 19.5 in (495 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 8 UL 1449:ed. 4 UL 1283:ed. 5 |
| MCOV | 320 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08464 |
| Local signalling | Status LED green per phase normal operation Status LED red per phase fault |
| Ambient operating | 149 °F (65 °C) |
| Device short name | EMA |
| Provided equipment | Alarm enable/disable switch Surge counter Sine wave tracking module Dry contacts |
| Wiring configuration | 4-wire |
MPN
SSP04EMA24F
