Schneider Electric SSP04EMA24SD
MPNSSP04EMA24SD
Active

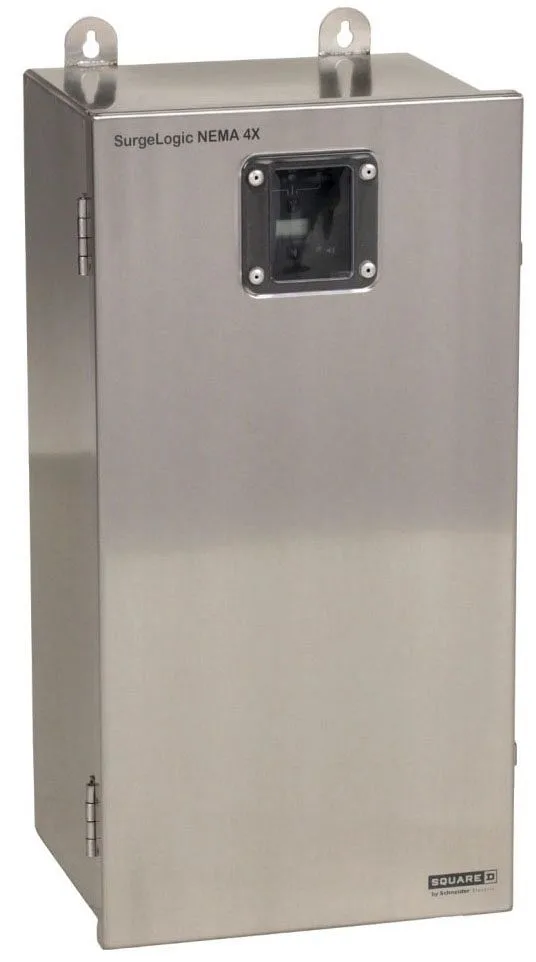

SURGE PROTECTION DEVICE SURGELOGIC 240KA 480Y/277 VAC 3 PHASE 4|SURGE PROTECTION DEVICE SURGELOGIC 240KA 480Y/277 VAC 3 PHASE 4 WIRE NEMA 4X DISCONNECT SWITCH
$2,895.00 – $3,956.88Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 480Y/277 V AC |
| Current | 150 A |
| Surge current | 240 kA |
| Nominal discharge current | 20 kA |
| Max number of poles | 3 |
| Phases | 3 phase |
| IP rating | NEMA 4X |
| Enclosure material | Stainless Steel |
| Device mounting | Surface |
| Connection | Lugs AWG 10...AWG 3/0 copper 35.4 lbf.in (4 N.m) |
| Cable length | 19.02 in (483 mm) |
| Depth | 9.4 in (238.8 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 11.7 in (297.2 mm) |
| Height | 22.7 in (575.8 mm) |
| Standards | CSA C22.2 No 8 UL 1449:ed. 4 UL 1283:ed. 5 |
| MCOV | 320 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08464 |
| Local signalling | Status LED green per phase normal operation Status LED red per phase fault |
| Ambient operating | 149 °F (65 °C) |
| Device short name | EMA |
| Provided equipment | Alarm enable/disable switch Surge counter Switch-disconnector with integrated switch for off/on/automatic Dry contacts |
| Wiring configuration | 4-wire |
MPN
SSP04EMA24SD
