Schneider Electric SSP04XDSE20A1

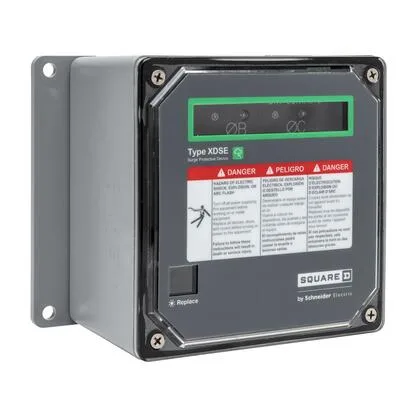

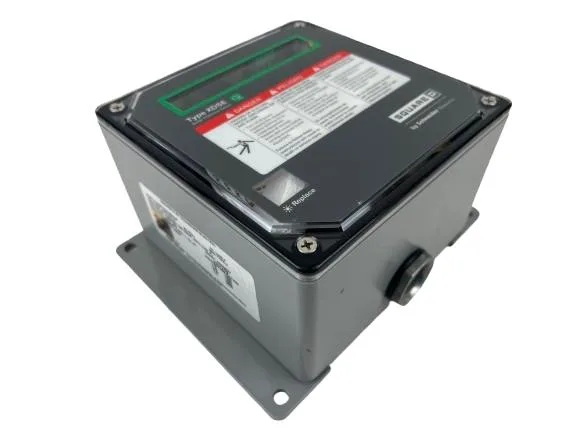

Schneider SSP04XDSE20A1 XDSE surge protection device, 200 kA, 480Y/277 VAC

MPNSSP04XDSE20A1
Obsolete

Schneider SSP04XDSE20A1 Protective Relays — now discontinued, supplied from remaining surplus and broker stock.

$1,355.00 – $2,686.43Ref. price · indicative, final on quote
Schneider Electric SSP04XDSE20A1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

SSP04XDSE20A1 specifications
ParameterValue
Voltage rating480Y/277 V AC
Voltage protection rating1200 V L-N 1200 V L - G 1200 V L - L 2000 V N - G
Current20 kA
Surge current200 A per phase
Phases3 phase
IP ratingNEMA 4X
Depth4.0 in (101 mm)
Width6.0 in (152 mm)
Height6.0 in (152 mm)
MCOV320 V
ProductSurge protection device
CategoryUS1DE1B08466
Wiring configuration4-wire

Product details

Overview

The SSP04XDSE20A1 is a Schneider XDSE Type 1 surge protection device rated for a 200 kA switching current on a 480Y/277 VAC 3-phase 4-wire system with a 320 V MCOV. Housed in a NEMA 4X enclosure, it suits outdoor or washdown installations; the 152.4 mm by 152.4 mm by 101.6 mm footprint fits standard panel layouts.

An RFQ confirms available quantity and lead time.

The SSP04XDSE20A1 carries a 200 kA switching current, double the 100 kA of the SSP04XDSE10A1, while sharing the same 320 V MCOV, 3-phase 4-wire configuration, and NEMA 4X enclosure. Choose the SSP04XDSE10A1 when the service entrance or panel rating is below 100 kA.
