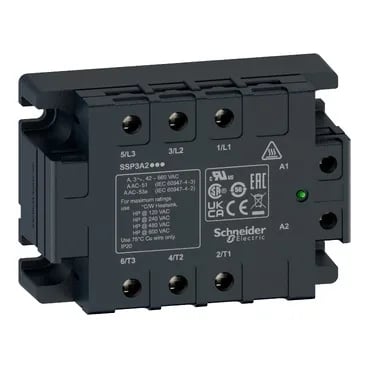

Schneider Electric SSP3A250P7RT
MPNSSP3A250P7RT
Obsolete
three phase relay, Harmony Solid State Relays, 50A, panel mount, thermal pad, input 90...280V AC, output 42...660V AC
$577.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Solid State Relays |
| Co-ordination type | TVS |
| Solid state output type | Random voltage switching |
| Product or component type | Panel mount relay |
| Output voltage | 42...660 V AC |
| Maximum voltage drop | = 1000 MOhm at 500 V DC |
| Maximum switching voltage | 9 V AC turn-off |
| Minimum switching voltage | 90 V AC turn-on |
| Coil voltage | 90...280 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV for input to case 6 kV for input/output circuit 6 kV for input/output to case |
| Load current | 0.4...50 A |
| Input current | 7...20 mA |
All specifications
| Parameter | Value |
|---|---|
| Surge current | 715 A 20 ms 750 A 16.6 ms |
| Line rated current | 50 A |
| Maximum leakage current | 3 mA off-state |
| Phases | 3 phase |
| IP degree of protection | IP20 |
| Mounting support | Panel |
| Connections - terminals | Screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input Screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output |
| Response time | 20 ms (turn-on) 30 ms (turn-off) |
| Pollution degree | 2 |
| Depth | 1.6 in (41 mm) |
| Width | 4.09 in (104 mm) |
| Height | 2.9 in (74.6 mm) |
| Standards | IEC/EN 62314 IEC/EN 60947-4-2 IEC/EN 60947-4-3 UL 60947-4-2 C22.2 No. 14 |
| Marking | CE |
| Category | US10CP222375 |
| Test button | Without test button |
| LED indicator | LED, green input |
| Flame retardance | V0 conforming to UL 94 |
| Device short name | SSP |
| Tightening torque | 1.2 N.m for input 2.5 N.m for output |
| Provided accessory | Thermal pad |
| Thermal resistance | 0.15 °C/W |
| Device presentation | Complete product |
| Dielectric strength | 4 kV AC for input/output 4 kV AC for input or output to case |
| Maximum capacitance | 8 pF for input/output |
| Overvoltage category | III |
| Output switching mode | Random voltage switching |
| Transient overvoltage | 1200 V |
| Maximum i2t for fusing | 2520 A².s for 10 ms at 50 Hz 2320 A².s for 8.3 ms at 60 Hz |
| Electromagnetic compatibility | Electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2 Electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2 Conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5 Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 Surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5 Electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4 Immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11 Immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11 Immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11 Immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11 Electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4 Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3 Radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1 Conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1 |
| Ambient air temperature for storage | -40...257 °F (-40...125 °C) |
| Ambient air temperature for operation | -40...176 °F (-40...80 °C) |
