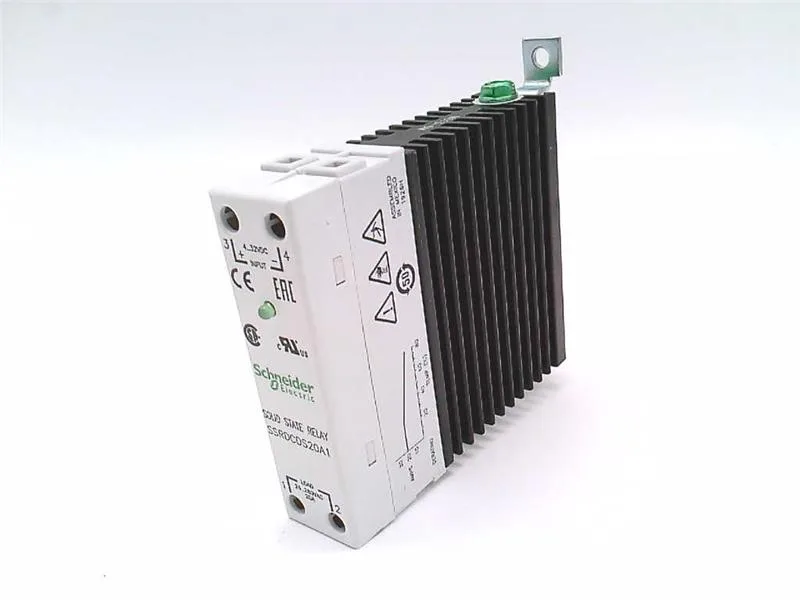

Schneider Electric SSRDCDS20A1
MPNSSRDCDS20A1
Obsolete
SOLID STATE RELAY DIN MOUNT 280VAC 20A|SOLID STATE RELAY DIN MOUNT 280VAC 20A
$39.37Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Zelio Relay |
| Solid state output type | SCR output Zero voltage switching |
| Product or component type | Solid state relay |
| Contacts type and composition | 1 NO |
| Output voltage | 24...280 V AC |
| Switching voltage | 4 V DC turn-on 1 V DC turn-off |
| Maximum voltage drop | <1.6 V on-state |
| Coil voltage | 4...32 V DC |
| Load current | 0.15...20 A |
| Surge current | 250 A for 16.6 ms |
| Current | 20 A |
| Input current limits | 8...12 mA |
All specifications
| Parameter | Value |
|---|---|
| Maximum leakage current | 10 mA off-state |
| Network number of phases | 1 phase |
| IP degree of protection | IP20 |
| Mounting support | Symmetrical DIN rail |
| Connections - terminals | Screw terminals 1 x 0.2...1 x 5.3 mm² for input - AWG 24...AWG 10 Screw terminals 1 x 0.2...1 x 5.3 mm² for output - AWG 24...AWG 10 |
| Response time | 0.5 cycle (turn-on) 0.5 cycle (turn-off) |
| Standards | IEC 62314 CSA LR 40487 UL E258297 IEC 60950-1 |
| DV (dt) | 500 V/µs off-state at maximum voltage |
| Marking | CE |
| Local signalling | LED (green) for input status |
| Device short name | SSR |
| Tightening torque | 0.6...0.7 N.m for input 0.6...0.7 N.m for output |
| Maximum i2t for fusing | 260 A².s for 8.3 ms |
| Output sustained overvoltage | 600 V |
| Ambient air temperature for storage | -40...125 °C |
| Ambient air temperature for operation | -40...80 °C |
MPN
SSRDCDS20A1
