Schneider Electric T02BN13B7
MPNT02BN13B7
Active

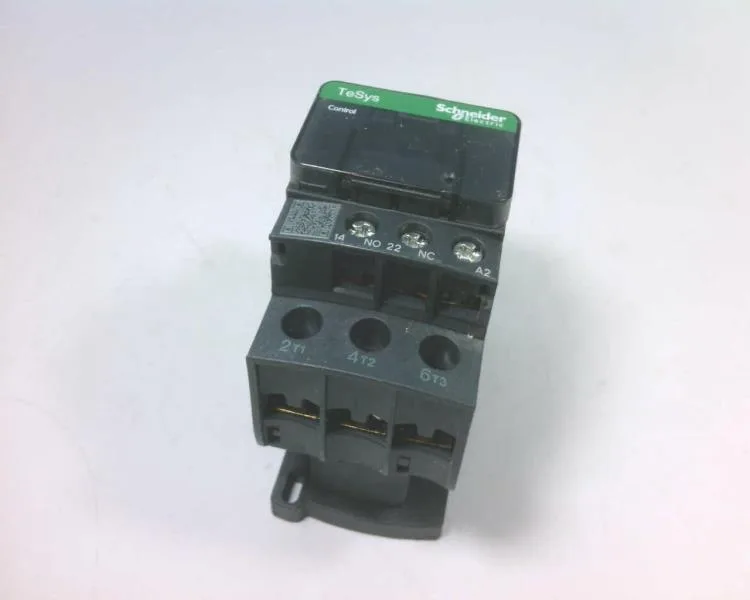

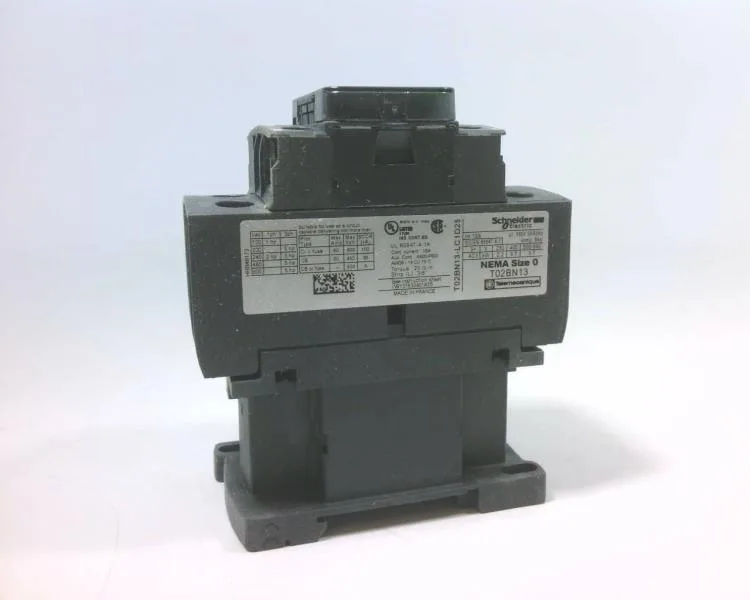

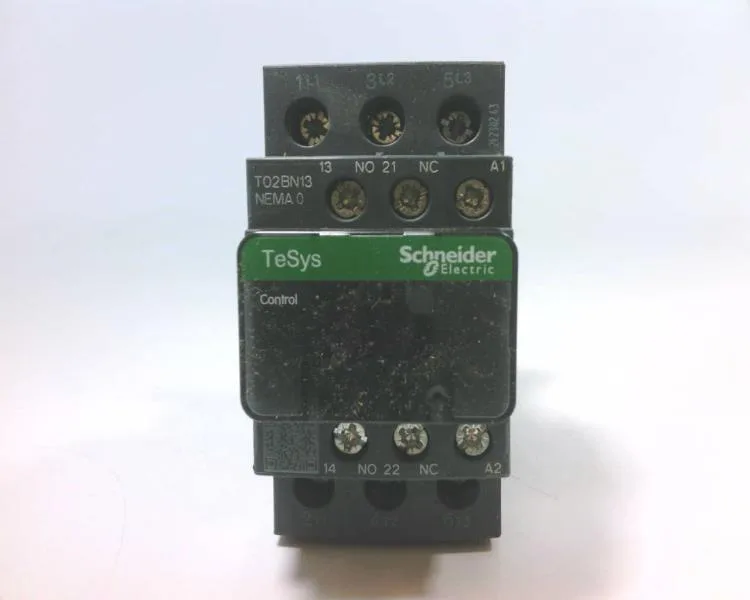

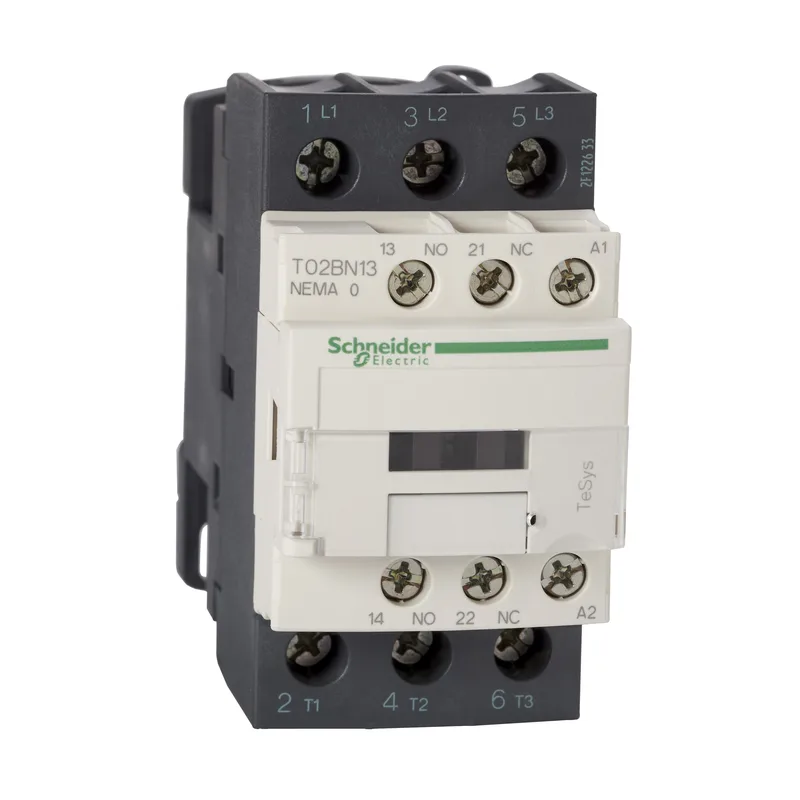

Square D T02BN13B7 Tesys Nema Sz0 Contactor 3 Pole 24 VAC
$217.00 – $506.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Non-reversing |
| [Ue] rated operational voltage | 600 V AC |
| Current | 18 A |
| Motor horsepower rating | 3 hp 200 V AC 3 hp 230 V AC 5 hp 460 V AC 5 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Screw clamp terminals |
| Depth | 3.66 in (92.96 mm) |
| Width | 1.76 in (44.70 mm) |
| Height | 3.34 in (84.84 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 0.92 lb(US) (0.42 kg) |
| Range | TeSys N |
| Category | US10CP121196 |
| NEMA size | 0 |
| Coil volltage | 24 V AC |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
MPN
T02BN13B7
