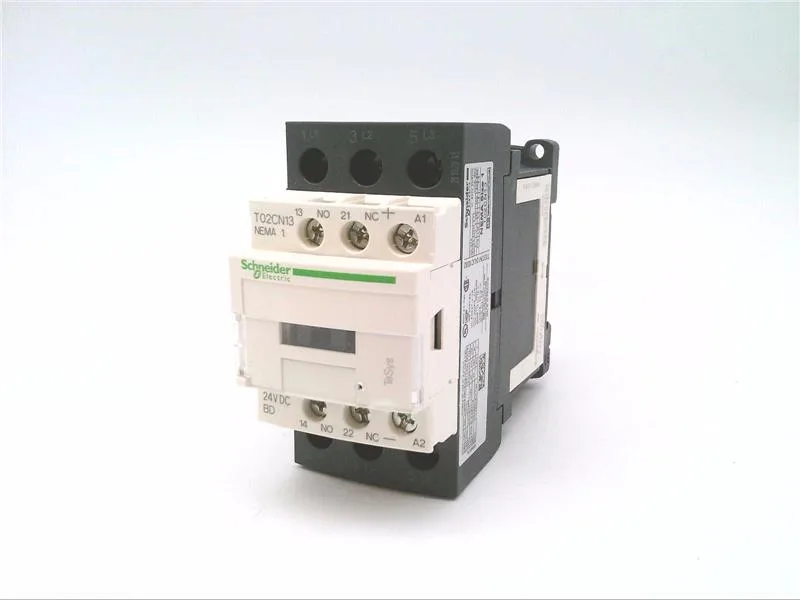

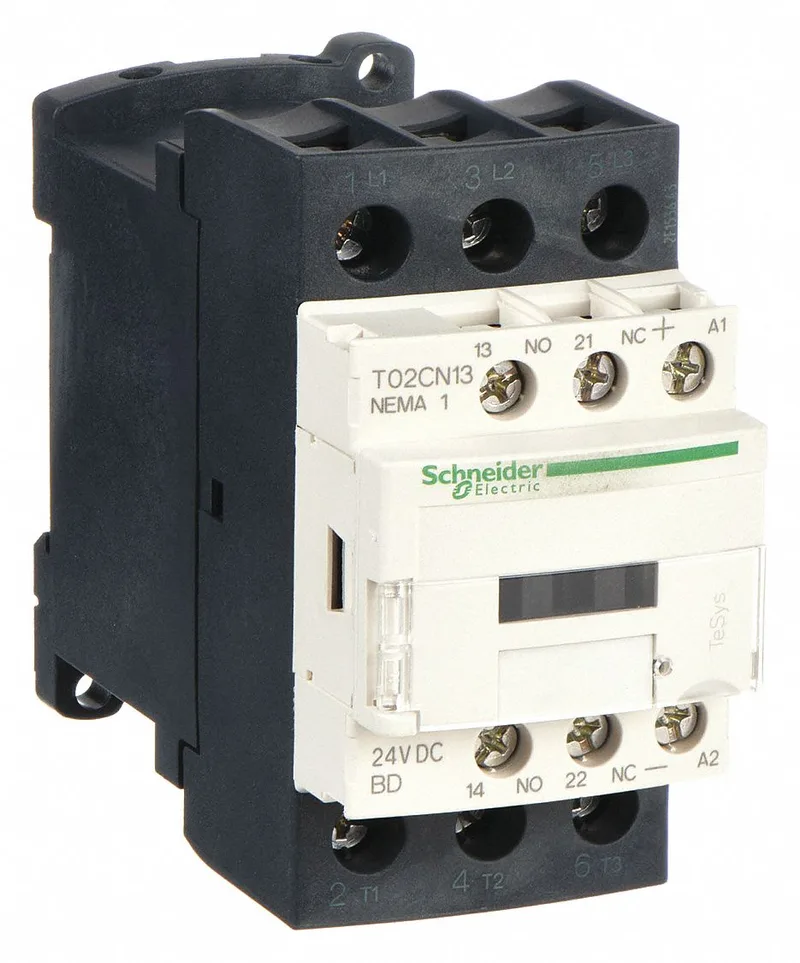

Schneider Electric T02CN13BD
MPNT02CN13BD
Active
TESYS NEMA SZ1 CONTACTOR 3 POLE 24 VDC|TESYS NEMA SZ1 CONTACTOR 3 POLE 24 VDC
$231.00 – $641.06Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Non-reversing |
| [Ue] rated operational voltage | 600 V AC |
| Current | 27 A |
| Motor horsepower rating | 7.5 hp 200 V AC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Screw clamp terminals |
| Depth | 4.00 in (101.60 mm) |
| Width | 1.76 in (44.70 mm) |
| Height | 3.34 in (84.84 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 1.28 lb(US) (0.58 kg) |
| Range | TeSys N |
| Category | US10CP121196 |
| NEMA size | 1 |
| Coil volltage | 24 V DC |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
MPN
T02CN13BD
