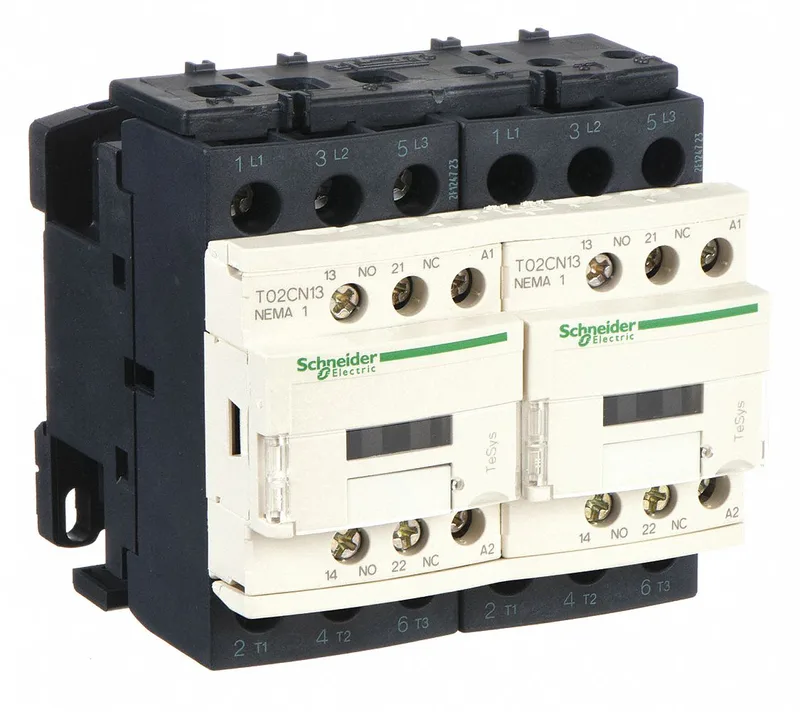

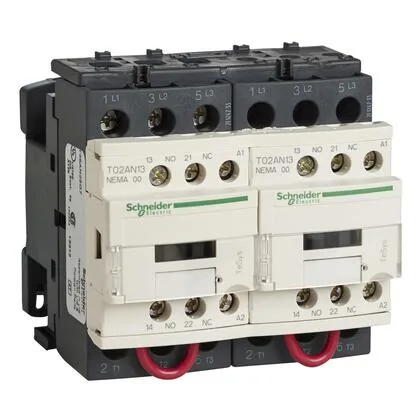

Schneider Electric T02CN23G7
MPNT02CN23G7
Active
SQD T02CN23G7 TESYS NEMA SZ1|SQD T02CN23G7 TESYS NEMA SZ1
$773.81 – $1,419.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | TeSys N |
| NEMA size | 1 |
| Coil voltage | 120 V AC |
| Product type | Contactor |
| Current | 27 A |
| Contactor type | Reversing |
| Network phases | 3 phase |
| Control circuit | Common control circuit |
| Poles | 3P |
| Electrical connection | Screw clamp terminals |
| NEMA degree of protection | Not rated (open device) |
| Motor horsepower rating | 7.5 hp 200 V AC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 600 V AC |
MPN
T02CN23G7
