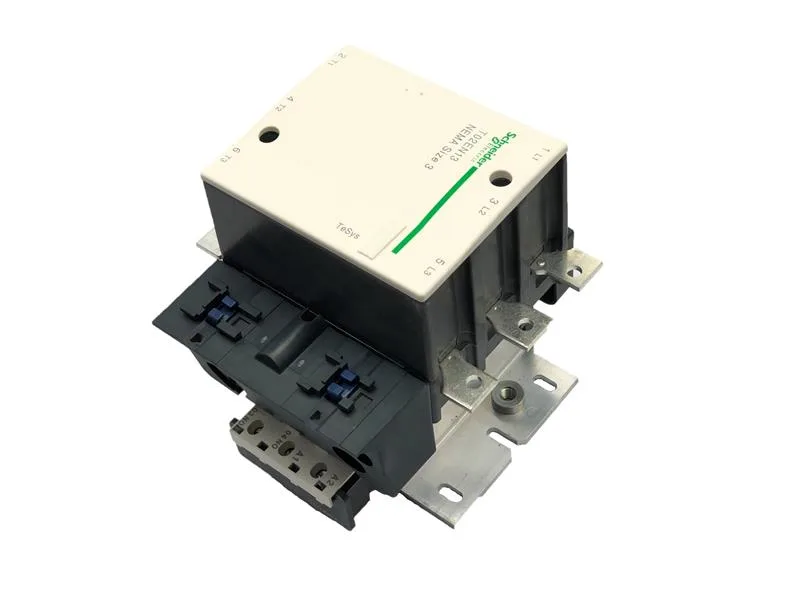

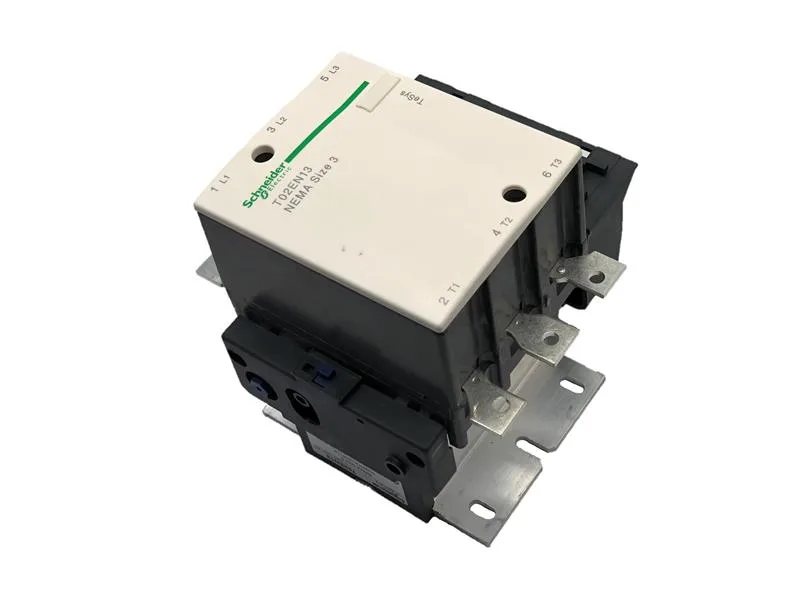

Schneider Electric T02EN13G6
MPNT02EN13G6
Obsolete
SQD T02EN13G6|SQD T02EN13G6 CONTACTORTESYSNEMASZ33P120VAC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Non-reversing |
| [Ue] rated operational voltage | 600 V AC |
| Current | 90 A |
| Motor horsepower rating | 25 hp 200 V AC 30 hp 230 V AC 50 hp 460 V AC 50 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Lugs ordered separately |
| Depth | 6.68 in (169.67 mm) |
| Width | 6.44 in (163.58 mm) |
| Height | 6.38 in (162.05 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 8.90 lb(US) (4.04 kg) |
| Range | TeSys N |
| Category | 21197-TESYS N CONTACTORS SIZES 3 - 7 |
| NEMA size | 3 |
| Coil volltage | 120 V AC |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO |
MPN
T02EN13G6
