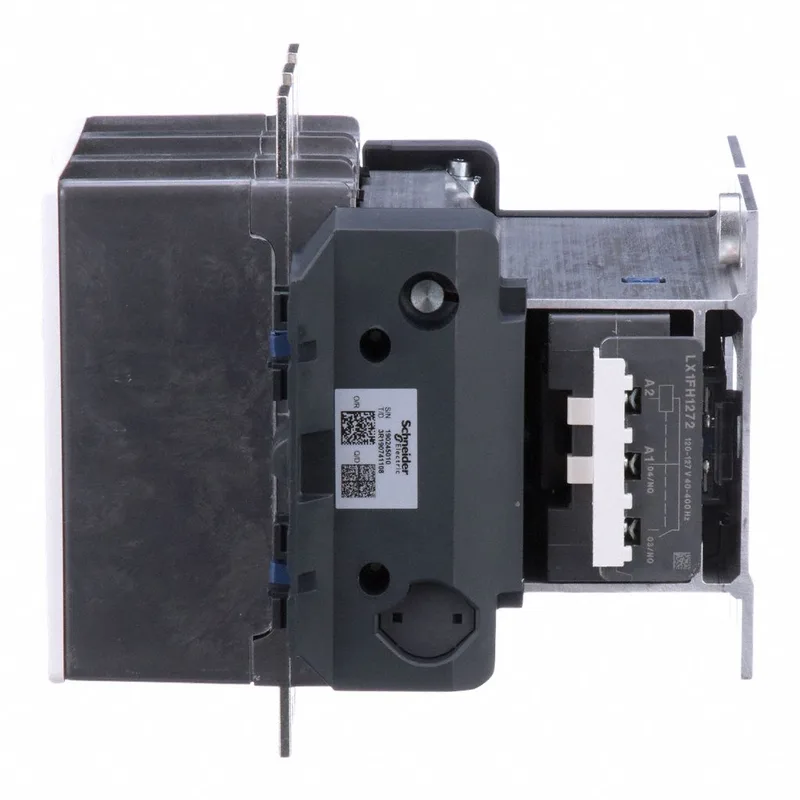

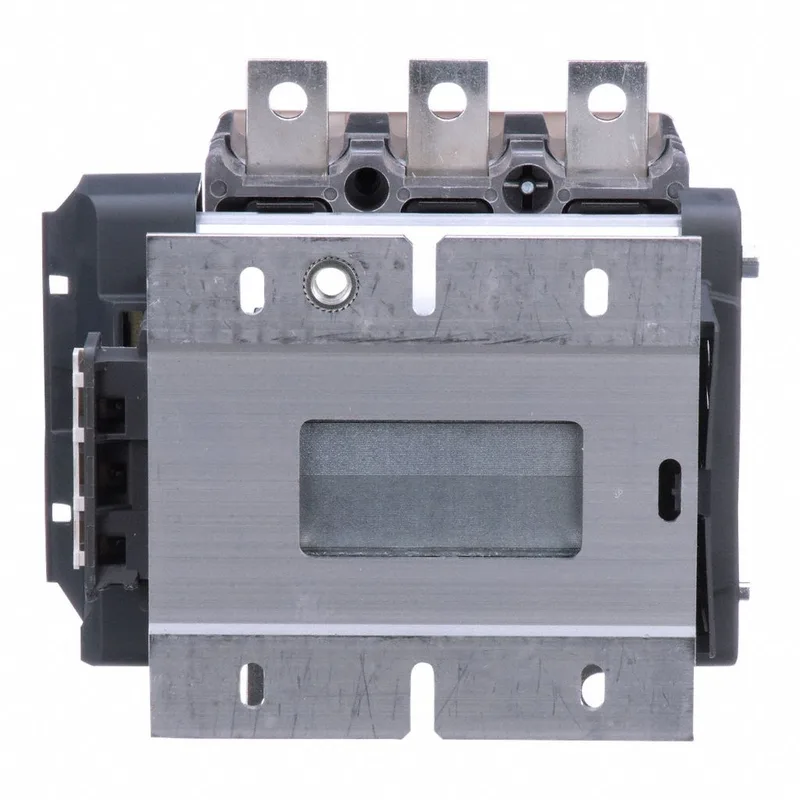

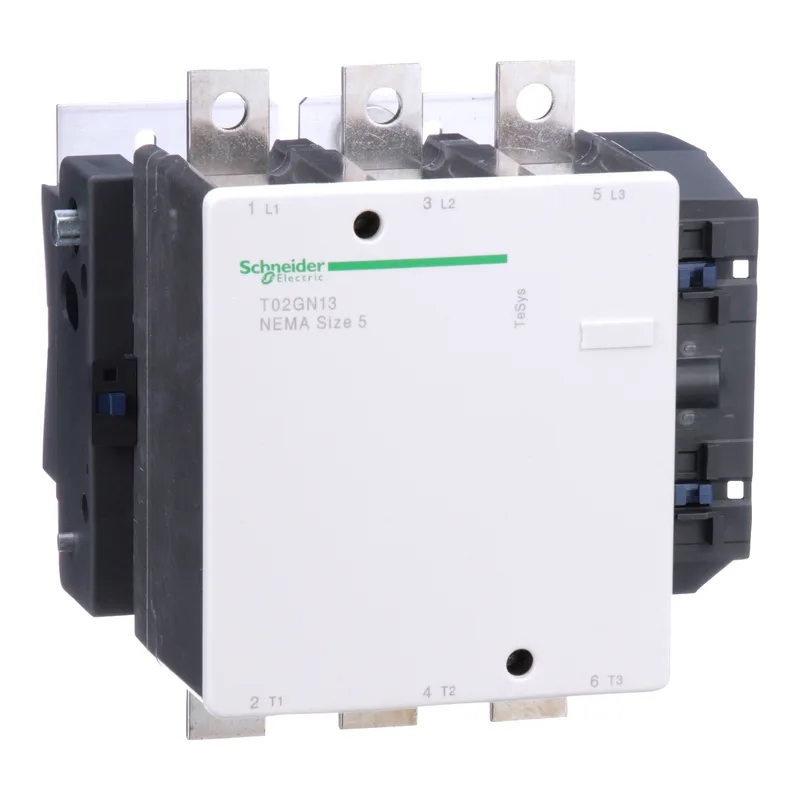

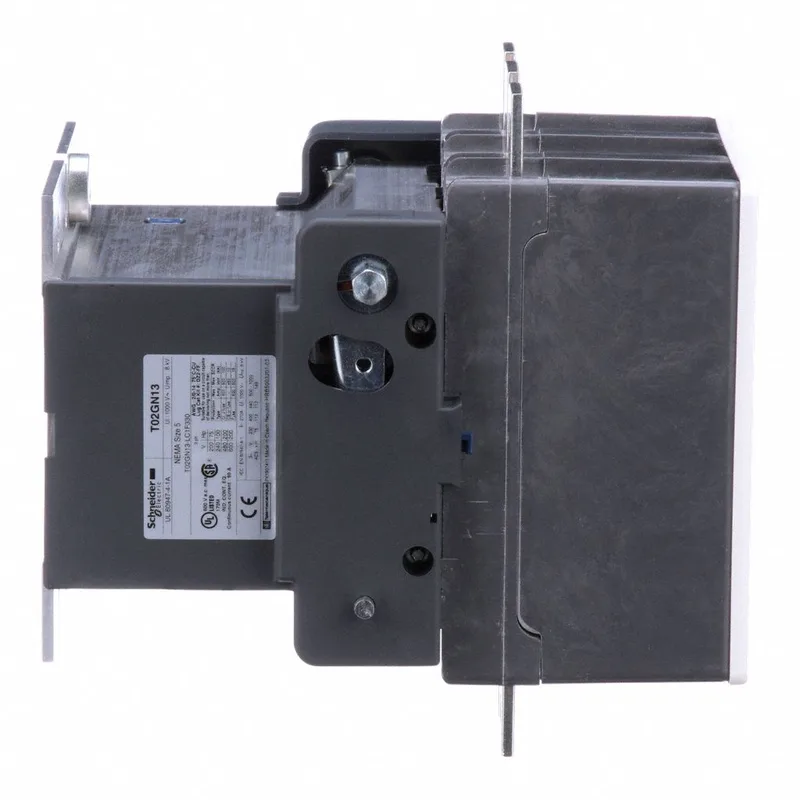

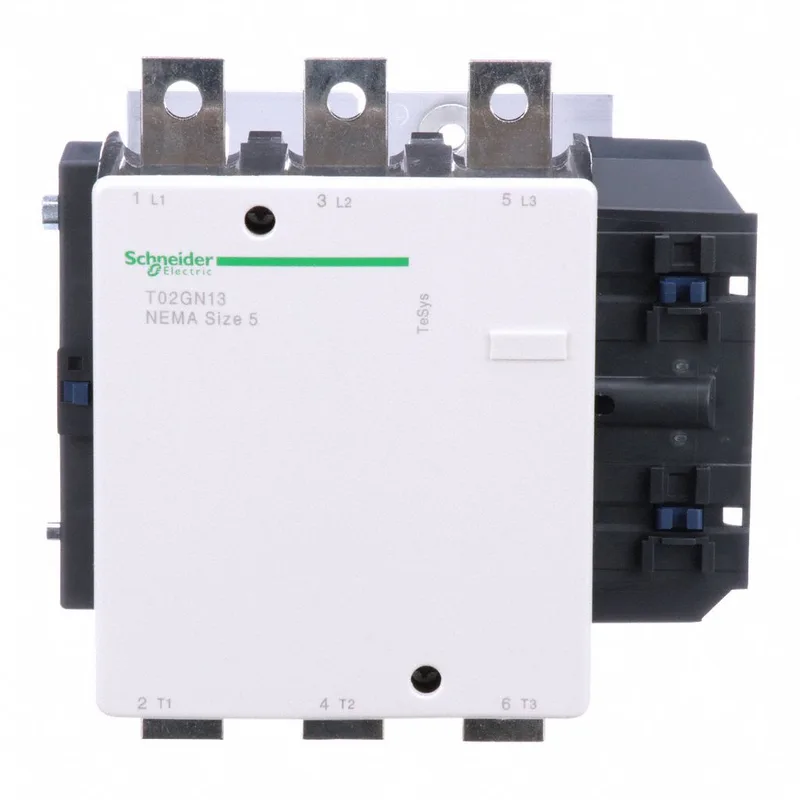

Schneider Electric T02GN13G7
MPNT02GN13G7
Active
CONTACTORTESYSNEMASZ53P120VAC|CONTACTORTESYSNEMASZ53P120VAC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor |
| Contactor type | Non-reversing |
| [Ue] rated operational voltage | 600 V AC |
| Current | 270 A |
| Motor horsepower rating | 75 hp 200 V AC 100 hp 230 V AC 200 hp 460 V AC 200 hp 575 V AC |
| Poles | 3P |
| Network phases | 3 phase |
| NEMA degree of protection | Not rated (open device) |
| Electrical connection | Lugs ordered separately |
| Depth | 8.71 in (221.23 mm) |
| Width | 8.39 in (213.11 mm) |
| Height | 8.11 in (205.99 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 20.52 lb(US) (9.31 kg) |
| Range | TeSys N |
| Category | US10CP121197 |
| NEMA size | 5 |
| Coil volltage | 120 V AC |
| Control circuit | Common control circuit |
| Auxiliary contact composition | 1 NO |
MPN
T02GN13G7
