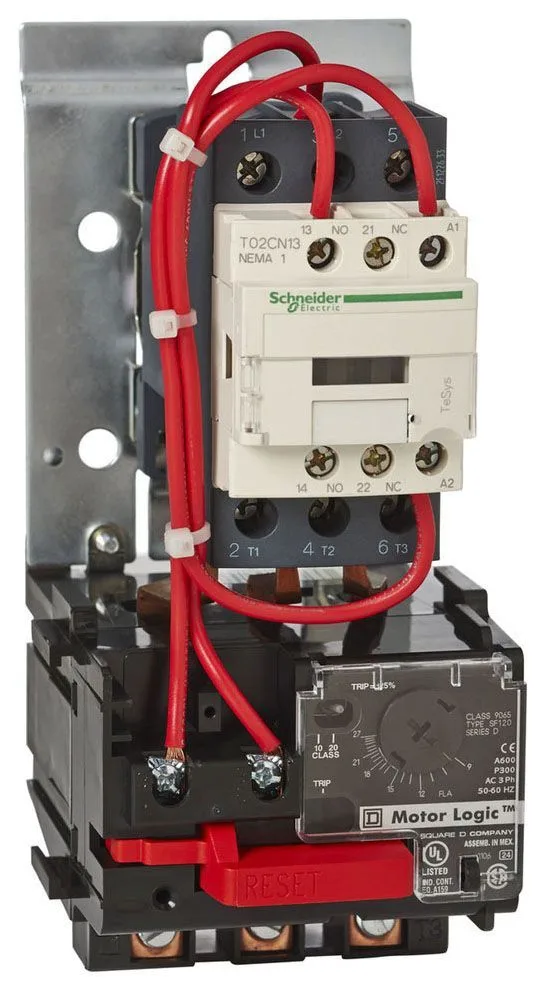

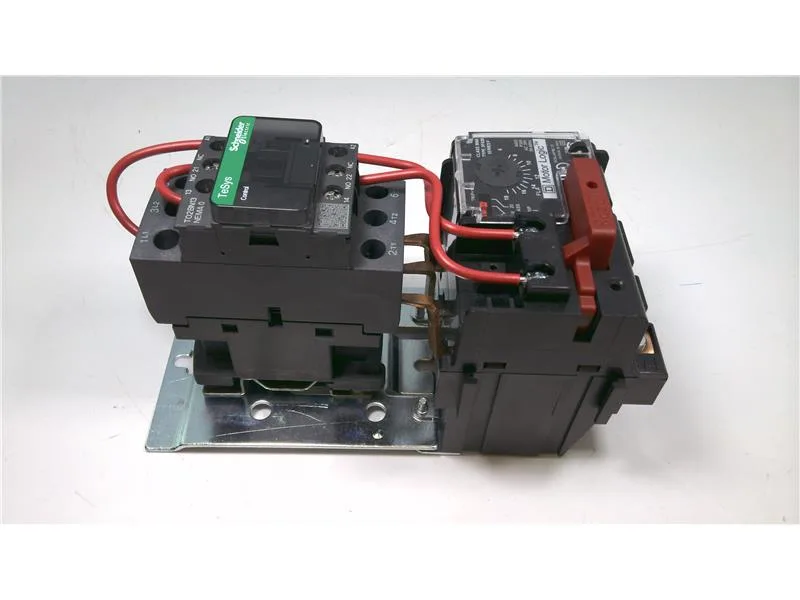

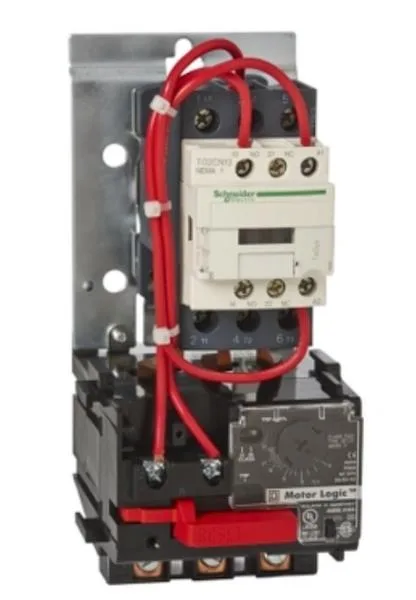

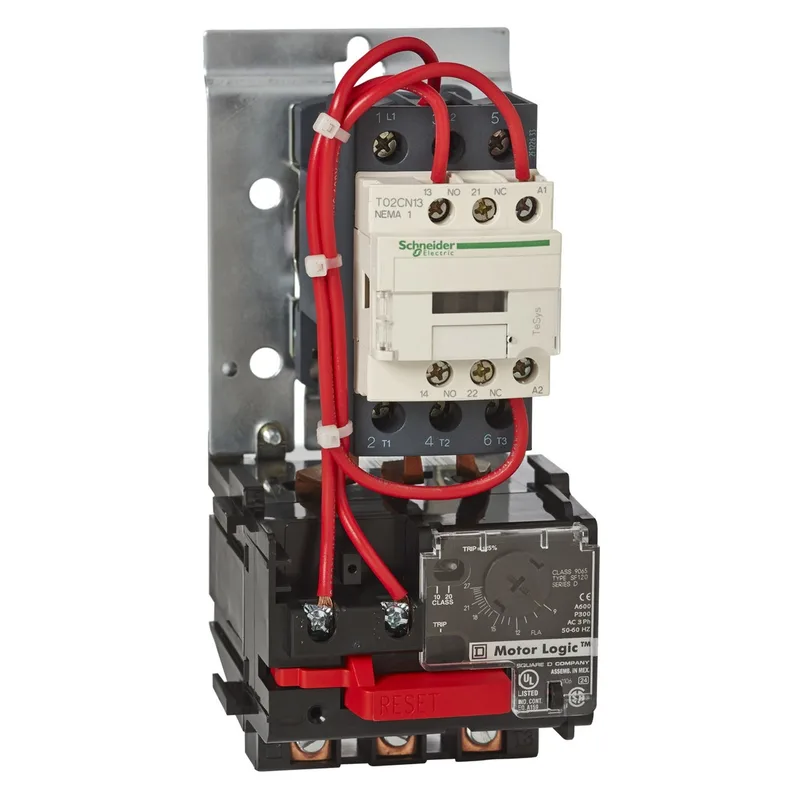

Schneider Electric T36BN13G7
MPNT36BN13G7
Active
OPEN STARTER TESYS NEMA SZ 03P 120VAC|OPEN STARTER TESYS NEMA SZ 03P 120VAC
$265.52 – $372.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | 3 phase |
| Parameter | Value |
|---|---|
| Product | Starter |
| NEMA size | 0 |
| Starter type | Non reversing |
| Overload type | Solid state Motor Logic class 10/20 6...18 A |
| Certifications | UL Listed CSA |
| Current rating | 18 A |
| Enclosure type | Not rated (open device) |
| Poles | 3P |
| Range of product | TeSys N |
| Horsepower rating | 3 HP 200 V AC 3 HP 230 V AC 5 HP 460 V AC 5 HP 575 V AC |
| Auxiliary contacts | 1 NO + 1 NC |
| Control circuit type | Common control circuit |
| Electrical connection | Screw clamp terminals |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 120 V AC |
MPN
T36BN13G7
