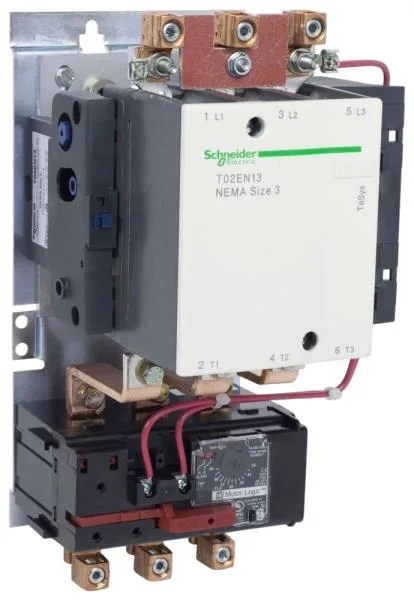

Schneider Electric T36EN13G7
MPNT36EN13G7
Active
STARTER TESYS NEMA SZ3 3P 120VAC|STARTER TESYS NEMA SZ3 3P 120VAC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | 3 phase |
| Parameter | Value |
|---|---|
| Product | Starter |
| NEMA size | 3 |
| Starter type | Non reversing |
| Overload type | Solid state Motor Logic class 10/20 30...90 A |
| Certifications | UL Listed CSA |
| Current rating | 90 A |
| Enclosure type | Not rated (open device) |
| Poles | 3P |
| Range of product | TeSys N |
| Horsepower rating | 25 HP 200 V AC 30 HP 230 V AC 50 HP 460 V AC 50 HP 575 V AC |
| Auxiliary contacts | 1 NO |
| Control circuit type | Common control circuit |
| Electrical connection | Lugs ordered separately |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 120 V AC |
MPN
T36EN13G7
