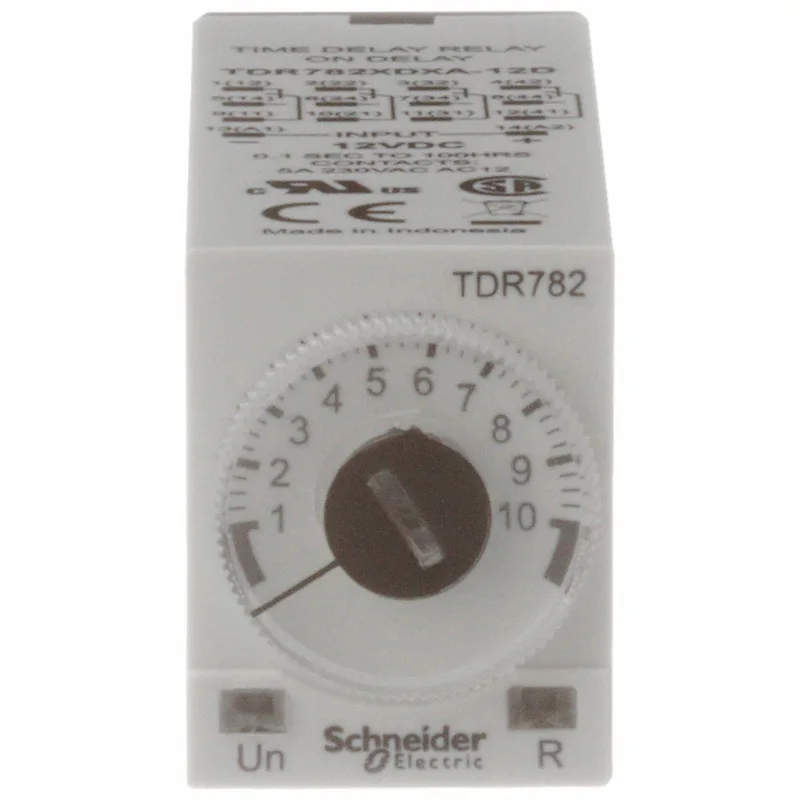

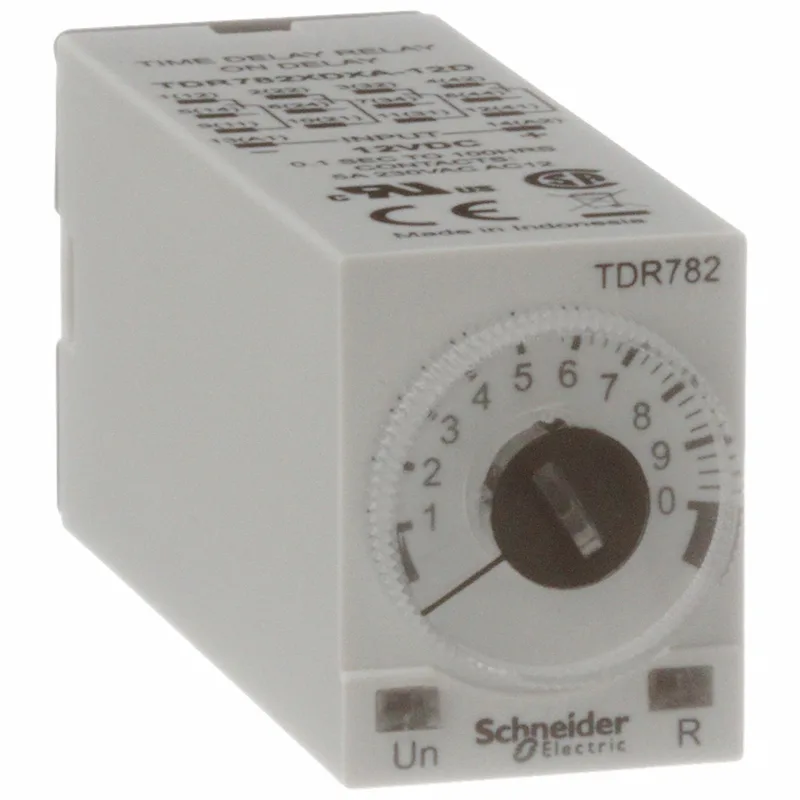

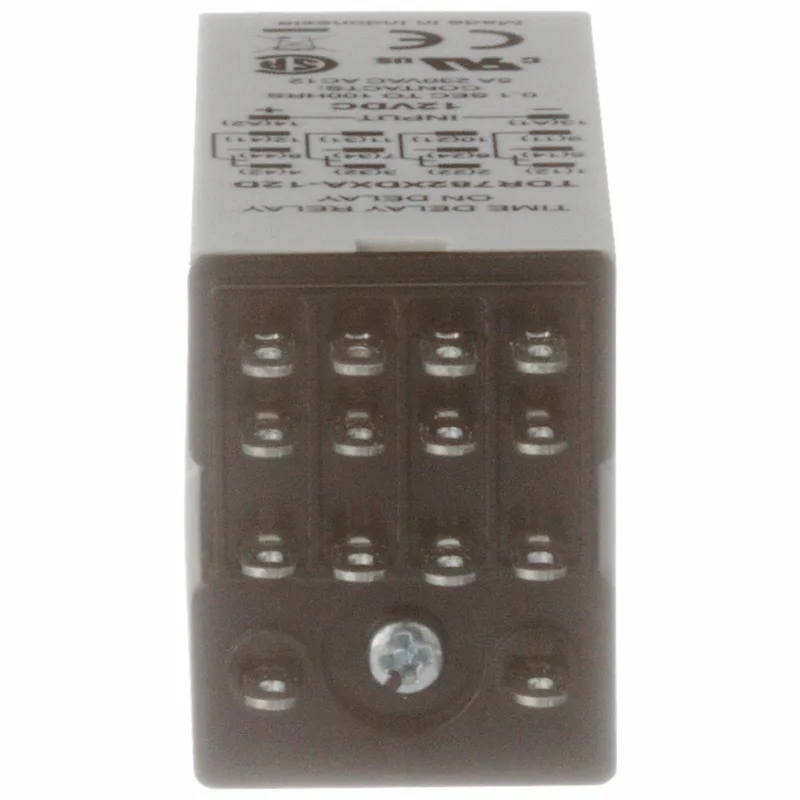

Schneider Electric TDR782XDXA-12D
MPNTDR782XDXA-12D
Obsolete
SCHNEIDER Single Function Time Delay Relay: Socket Mounted, 12V DC, 5 A, 14 Pins/Terminals, On Delay
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Dial front |
| Time delay type | A |
| Product or component type | Time delay relay |
| Voltage range | 0.9...1.1 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un 0.85...1.15 Un |
| Rated supply voltage | 12 V DC |
| Nominal output current | 3 A |
| Power consumption in | 1.5 W 12 V |
| IP degree of protection | IP50 IEC 60529 enclosure) |
| Mounting support | Socket |
| Depth | 1.06 in (27 mm) |
| Width | 0.8 in (21 mm) |
| Height | 2.3 in (59.4 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 1.8 oz (50 g) |
| Contacts material | Silver alloy contacts |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 61810-1 |
| Category | US10CP221127 |
| Reset time | 50 ms maximum |
| Product range | Legacy |
| Repeat accuracy | +/- 0.5 % - 5...5 % |
| Switch function | 4PDT |
| Local signalling | 1 LED amber output status 1 LED green input status |
| Time delay range | 100 ms...1 s 1...10 s 0.1...1 min 1...10 min 0.1...1 h 1...10 h 10...100 h |
| Temperature drift | +/- 0.05 %/°C |
| Dielectric strength | 2000 V between input and output |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
TDR782XDXA-12D
