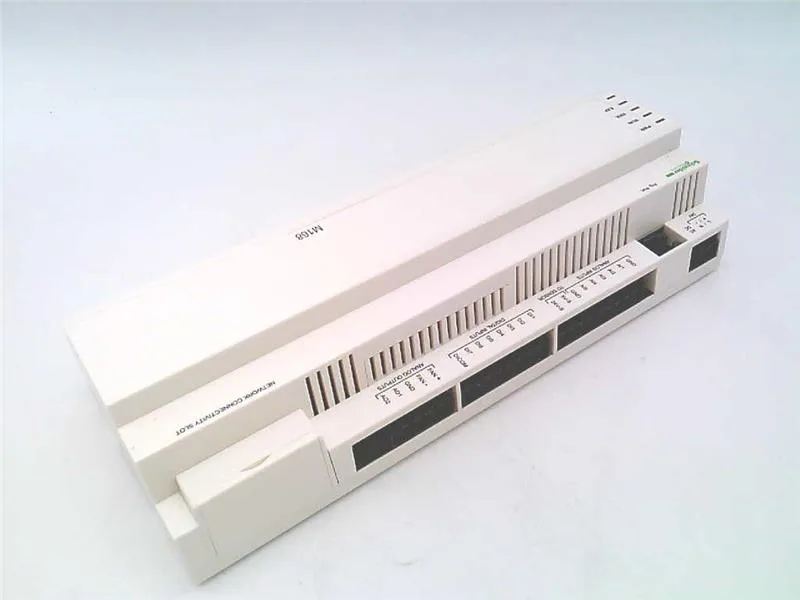

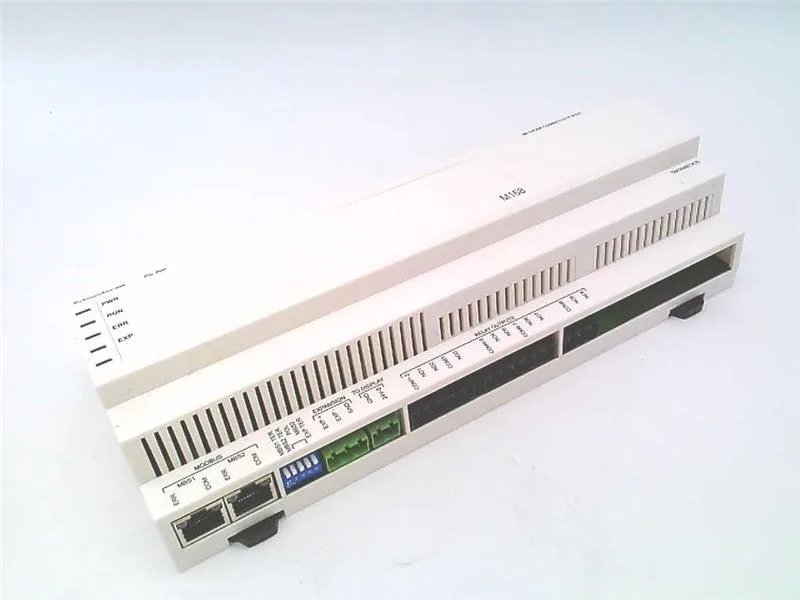

Schneider Electric TM168B23CS

Schneider Electric TM168B23CS

MPNTM168B23CS
Obsolete

SQD TM168B23CS BASE BLIND PROG 23|SQD TM168B23CS BASE BLIND PROG 23 I/0, BMS, SOLUTION

$243.61Ref. price · indicative, final on quote
Schneider Electric TM168B23CS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TM168B23CS key specifications
ParameterValue
Display typeWithout Display
Protection typeReverse polarity protection analog input voltage Overload protection analog output voltage Reverse polarity protection power supply
Range of productModicon M168 logic controller
Product or component typeBase controller
Discrete input voltage typeAC/DC
Supply voltage limits20.4...27.6 V
Discrete input voltage24 V
Supply voltage20...40 V DC 24 V AC
Voltage state 0 guaranteed= 1000 Ohm voltage 40...300 Ohm current
Voltage state 1 guaranteed> 15 V discrete input
Sensor power supply4.4...5 V DC 18...36 V DC
Power consumption in30 VA 24 V

All specifications

TM168B23CS additional specifications
ParameterValue
Maximum power consumption in22 W
Network frequency50/60 Hz
Network frequency limits47...63 Hz
IP degree of protectionIP20 IP40 front face:
Communication serviceOpen collector synchro on AC power supply
Communication port protocolBACnet MS/TP, optional BACnet IP, optional Modbus
Mounting support35 mm symmetrical DIN rail
Electrical connectionAnalog input AI1 to AI5, GND, +5 V, 24 V) 9 1 removable screw terminal block Discrete input DI1 to DI7, COM) 8 1 removable screw terminal block Fan output FAN+, FAN-) 2 1 removable screw terminal block Expansion bus +24 V, GND, CAN-, CAN+) 5 1 removable screw terminal block Power supply L/+, N/-) 2 1 removable screw terminal block Discrete output NO1 to NO3, COM 1-2, COM 3) 5 1 removable screw terminal block Discrete output NO4 to NO7, COM 6-7, COM 4-5) 6 1 removable screw terminal block Discrete output NO8, NC8, COM8) 3 1 removable screw terminal block Analog output AO1, AO2, GND) 3 1 removable screw terminal block
Maximum cable distance between devices2 twisted pair cables USB TTL <98.4 ft (30 m) supply for remote display
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...10000 ft (0...3048 m)
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm constant amplitude 5...8.4 Hz) 1 gn constant amplitude 8.4...150 Hz)
Depth2.4 in (61.5 mm)
Width9.9 in (251 mm)
Height5.09 in (129.19 mm)
StandardsEN/IEC 61000-6-3 EN/IEC 60730-1 EN/IEC 61000-6-1
MarkingCE
VariantProgrammable
CategoryUS1PC1222535
LSB value10 mV analog output voltage 0.02 mA analog output current 0.07 °C analog input NTC 0.5 °C analog input Pt 1000 5 mV analog input voltage 0.01 mA analog input current
Data backed upDate and hour internal battery, 3 days
Number of port1 Modbus RJ45 slave 1.2...57.6 kbit/s 1 Modbus RJ45 master/slave 1.2...57.6 kbit/s 1 expansion bus terminal block master/slave
Realtime clockWith clock, clock drift <= 30 s/month
Memory capacity544 kB
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for alarm status 1 LED (red) for expansion bus 1 LED (red) for user
Software functionApplicatives functions blocks
Input (output number)7 discrete input 5 configurable analog input 8 discrete output 1 dedicated PWM output 2 configurable analog output
Discrete input logicSink or source (positive/negative)
Overvoltage categoryIII
Discrete input number7
Absolute accuracy error-5 %...+2 % of full scale 1...5 kOhm analog output voltage +/- 2 % of full scale > 5 kOhm analog output voltage +/- 3 % of full scale analog output current +/- 0.5 % of full scale analog input
Immunity to microbreaks10 ms
Product specific applicationFor solutions
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...131 °F (-20...55 °C) UL -4...149 °F (-20...65 °C)
MPN
TM168B23CS
