Schneider Electric TM168GDB
MPNTM168GDB
Obsolete

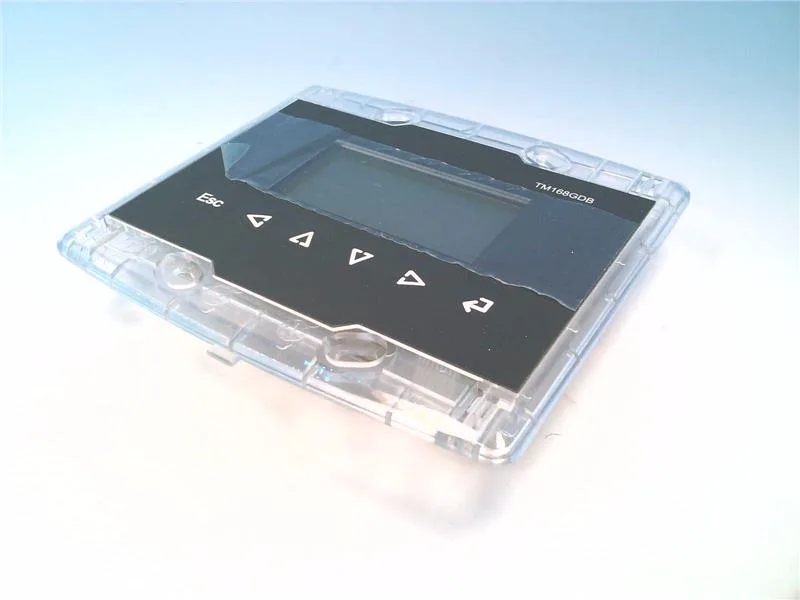

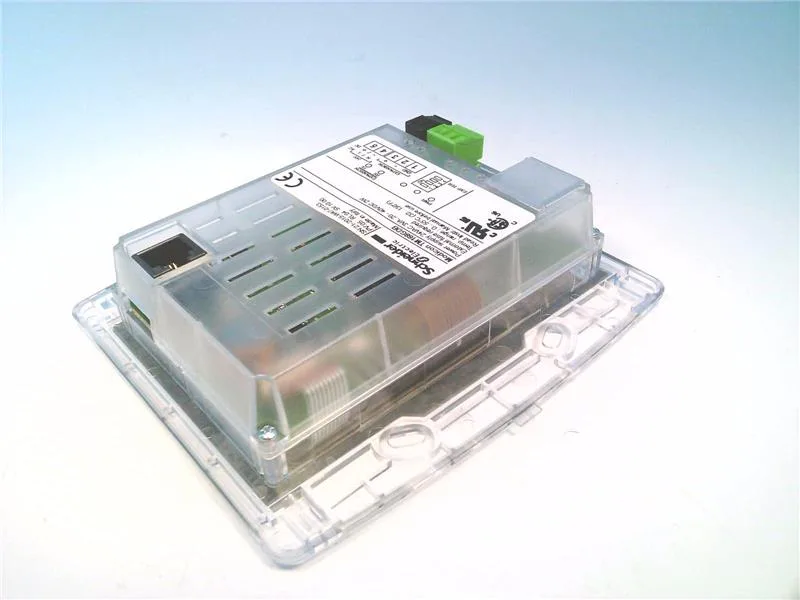

SQD TM168GDB GRAPHIC DISPLAY|SQD TM168GDB GRAPHIC DISPLAY
$624.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Memory type | Internal |
| Display type | LCD |
| Range of product | Modicon M168 logic controller |
| Product or component type | Graphic display |
| Supply voltage limits | 18...30 V |
| Supply voltage | 24 V AC/DC non isolated |
| Power consumption in | 5 W |
| IP degree of protection | IP40 front face: |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Vibration resistance | 3.5 mm (f= 5...8.4 Hz) conforming to EN/IEC 60028-2-6 1 gn (f= 8.4...150 Hz) conforming to EN/IEC 60028-2-6 |
| Depth | 1.4 in (36 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 4.4 in (112 mm) |
| Height | 5.2 in (133 mm) |
| Display colour | Monochrome |
| Standards | UL 60730-1 CSA 60730-1 EN 61000-6-1 EN 60730-1 EN 61000-6-3 |
| Supply | External source |
| Marking | CE |
| Category | US1PC1222535 |
| Backup time | 10 years |
| Number of key | 6 |
| Realtime clock | With <= 30 s/month 2 days |
| Local signalling | 1 LED (green) for power supply 1 LED (red) for bus activity RX (reception) 1 LED (red) for bus activity TX (transmission) |
| Display resolution | 128 x 64 pixels |
| Overvoltage category | III |
| Immunity to microbreaks | 10 ms |
| Number of read (write cycles) | 1000000 |
| Ambient air temperature for storage | -4...158 °F (-20...70 °C) |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) |
MPN
TM168GDB
