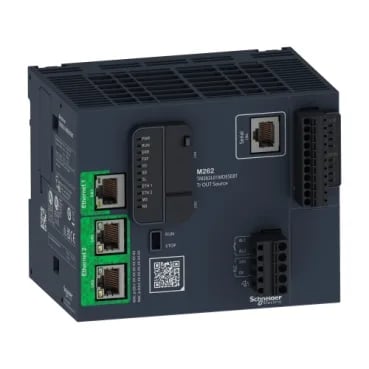

Schneider TM262L01MDESE8T DPAC Module, 82 W, 2×Eth

Name: TM262L01MDESE8T
Brand: Schneider Electric
SKU: TM262L01MDESE8T
Availability: LimitedAvailability
Author: Storeroom Stan

MPNTM262L01MDESE8T

Active

Schneider Electric EcoStruxure Automation Expert TM262L01MDESE8T DPAC Module, 24 V DC, 82 W, dual Ethernet, OPC UA server.

Request quote

Schneider Electric TM262L01MDESE8T datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM262L01MDESE8T key specifications
Parameter	Value
Range of product	EcoStruxure Automation Expert
Product or component type	DPAC module
Integrated connection type	Ethernet 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 TM3 IO bus
Surge withstand	1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Supply voltage limits	20.4...28.8 V DC
Supply voltage	24 V DC - 15...20 %
Inrush current	40 A
PLC power consumption	82 W
IP degree of protection	IP20
Communication service	OPC UA server (Encrypt) HTTPs Methods (API) NTP client
Communication port protocol	EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus SL client/server
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit

All specifications

TM262L01MDESE8T additional specifications
Parameter	Value
Electrical connection	removable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum cable distance between devices	Shielded cable Shielded cable <49.2 ft (15 m) RS232
Pollution degree	2
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	5...95 %, without condensation in operation) 5...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting
Depth	3.5 in (90 mm)
Width	4.9 in (125 mm)
Height	3.9 in (100 mm)
Standards	UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2
Category	US1PC1522555
Insulation	Between supply and internal logic 500 V AC Non-insulated between supply and ground
Backup time	1000 h 77 °F (25 °C)
Clock drift	<= 10 s/month 77 °F (25 °C)
Data backed up	1 GB built-in flash memory backup of user programs
Realtime clock	With
Local signalling	1 LED (green/red) for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/orange) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/red) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS
Transmission rate	57.6 kbit/s 49.2 ft (15 m) RS485 57.6 kbit/s 9.8 ft (3 m) RS232 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Overvoltage protection	With
Immunity to microbreaks	0.01 ms
Electromagnetic emission	Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions230...1000 MHz IEC 55011
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction	0.005 ms
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Maximum number of connected devices	EtherNet/IP: 64 Modbus TCP: 64 Modbus TCP/EtherNet/IP: 96
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation	-4...140 °F (-20...60 °C) horizontal installation) -4...122 °F (-20...50 °C) vertical installation) -4...113 °F (-20...45 °C) flat mounting)
Resistance to electrostatic discharge	4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2

Product details

Key specs and fit

The TM262L01MDESE8T: Depth of 90 mm and width of 125 mm – fits a standard 2-slot DIN-rail footprint. The module uses removable spring-cage terminals for both the 24 V DC supply and I/O wiring. IP20 enclosure, pollution degree 2. Vibration resistance: 3.5 mm at 2–8.4 Hz, 1 gn up to 200 Hz on symmetrical rail. Shock rated at 15 gn, 11 ms. Those numbers confirm it for machine-mount duty inside a standard panel.

Certified under UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1/61010-2-201, CSA C22.2 No. 213, ANSI/ISA 12-12-01, and IEC 61131-2. Conducted and radiated emissions meet IEC 55011 Class A (industrial). The surge withstand is 1 kV common mode on power lines per IEC 61000-4-5; fast transient immunity is 2 kV on power lines per IEC 61000-4-4. These declarations cover most plant-floor spec sheets and machine-safety reviews.
